Blue PE100 for Compressed Air
Blue PE100 for Compressed Air

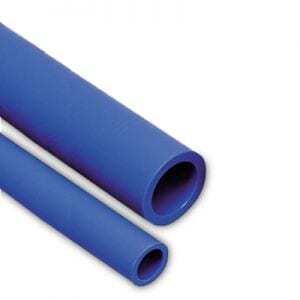

Blue PE100 for Compressed air piping products are specifically designed for compressed air. Blue PE100 is made of Solvay Eltex TUB 124 blue high density polyethylene (HDPE) resin and is extremely ductile, light weight, corrosion resistant and creates minimal system pressure drop. Installation is faster, more flexible and lower cost than metal systems.
Blue PE100 is not affected by condensate and moist environments which cause most metal systems to scale, pit or corrode, which result in increased system pressure drop. It is chemically resistant to synthetic and mineral oils in compressed air. Blue PE100 also provides excellent chemical resistance to a multitude of acids, alkalies and hydrocarbons.
-
Body:Blue PE
-
Pressure Range:20mm to 110mm (SDR 7.4) = 230 PSI at 20°C
160mm to 315mm (SDR 11) = 150 PSI at 20°C -
Temperature:-30°C to 60°C (-32°F to 140°F)
Features & Benefits
- Excellent Resistance to Compressor Oils and Humidity
- Excellent Stress Cracking Resistance
- High Impact Resistance
- High Abrasion Resistance
Commonly used in these markets
Process Industrial
Valve Specification Guide
Engineering specifications are crucial as they provide precision, clarity, quality assurance and compliance in your projects. Download to save you time and assure accuracy in your specifications.
Chemical Resistance Guide
Corrosion resistance is an important factor in selecting the right material of construction for valves, pipe, tubing, fittings and more. Designed to easily navigate, this guide can be downloaded for easy reference.
Materials of Construction
Understanding materials of construction is essential to the accurate selection of valves, pipe, tubing, fittings and more. Designed to easily navigate, this guide can be downloaded for easy reference.
