| Series: | F6.30 |
| Rotor: | ECTFE |
| Shaft: | Ceramic or 316SS (for metal sensors) |
| Bearings: | Ceramic |
| Seals: | EPDM, Viton |
| Pipe Sizes: | 1/2″ – 24″ |
| Flow Ranges: | 0.15 to 8 m/s |
Description

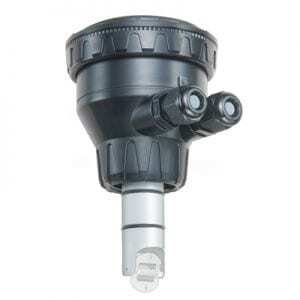

Blind TransmittersThe Type F6.30 is a 3-wire flow transmitter with a 4 to 20 mA analog output and a solid state relay output. For applications requiring visual flow indication, it is an economical alternative to an M9.00 instrument/sensor direct mount assembly. |
✓ Large Selection of Sensor Materials
✓ Corrosion Resistant PVC Housing
✓ Self Cleaning Design
|
Technical
Compatibility
Type F6.30 F6.30 Compatibility Chart
Fittings
| Installation Fittings | Size | Materials | Pressure Temperature | |
|---|---|---|---|---|
 |
Tees Socket Threaded Flanged | 1/2" to 1-1/2" | Body: PVC, PP, PVDF Seals: EPDM, Viton | 150 psi @ 20C (70F) |
 |
Bolt-On Saddles | 1-1/2" to 12" | Body: PVC Insert: CPVC, PVDF Seals: EPDM, Viton, Nitrile | 150 psi @ 20C (70F) |
 |
Metal Strap-On Saddles | 3" to 18" | Body: Cast Iron/SS Insert: PVCSeals: Nitrile | 150 psi @ 20C (70F) |
 |
Weld-On Adaptors | 1-1/2" to 24" | 316 SS Carbon Steel PE Other materials are available | 365 psi with metal F3.00 sensor |
 |
316 SS FNPT Tees | 3/4" to 1-1/4" | 316 SS | 365 psi with metal sensor |
 |
Plugs for Installation Fittings | Body: PVC, CPVC, PP, PVDF Seals: EPDM, Viton | ||
Pricing
Click below for detailed product information including pricing, availability, and additional supporting documentation.
| Seals | Body Material | |||
|---|---|---|---|---|
| CPVC | PVDF | 316L SS | ||
| EPDM |  |
|
|
|
| Viton | |
|
|
|
