Bolt-on Pipe Saddles – PS Series

Bolt-on Pipe Saddles

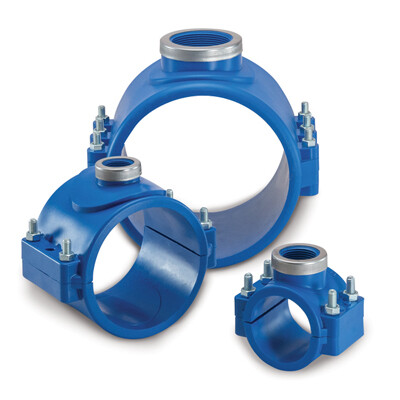

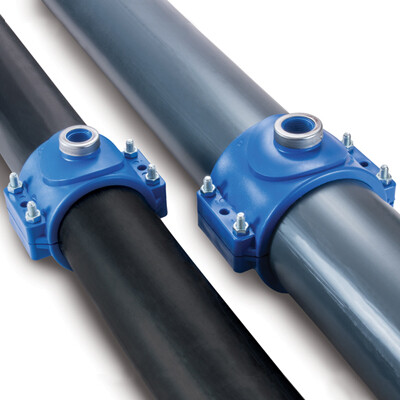

Chemline PS Series Bolt-on pipe saddles are for IPS size PVC or HDPE piping. Made of solid polypropylene, these fittings are durable and impact resistant. They are ideal for outdoor applications in irrigation and also widely used on water treatment skids. Polypropylene also has excellent chemical resistance.

The female threaded branch comes standard with a 304 stainless steel reinforcing ring. Pipe saddles are supplied with 304 stainless steel bolts.

Pigmented Polypropylene
  • Size:
    1-1/2" to 6" Pipe Sizes, 1/2" to 2" FNPT Branch Sizes
  • O-Rings:
    Nitrile
  • FNPT:
    1/2" to 2"
  • Reinforcement Ring:
    Galvanized Steel
Size

1-1/2" to 6" Pipe Sizes, 1/2" to 2" FNPT Branch Sizes

O-ring

Nitrile

Fnpt

1/2" to 2"

Reinforcement Ring

Galvanized Steel

Features & Benefits

  • CNC Welding Technology
    CNC saddle / butt fusion results in the capability of welding more types of branches with stronger,more reliable and more accurate welds than other technologies such as socket fusion, hand welding or cementing.
  • Design Validation
    Validation of unique customer designs for production through destructive and impact tests, and pressure testing of sample pieces to guarantee high product quality and reliability.
  • Stringent Quality Control
    Computer control of all welding aspects, and pressure testing, result in products capable of meeting customers quality control and reporting standards including PPAP and other schemes. Verification of finished manifold dimensions for confirmation of manufacturing accuracy.
  • Weld Traceability
    Downloadable welding parameters are recorded for each weld and saved for customer traceability.
  • Repeatability
    Welding parameters are saved on computer for reproduction of identical manifolds.
