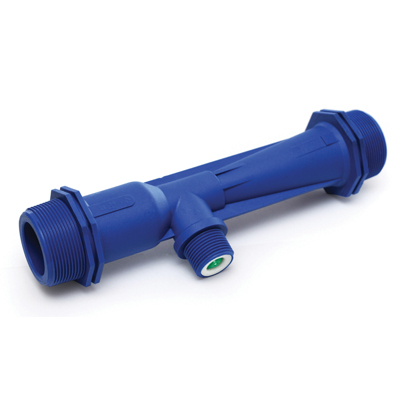

Injectors – IN Series

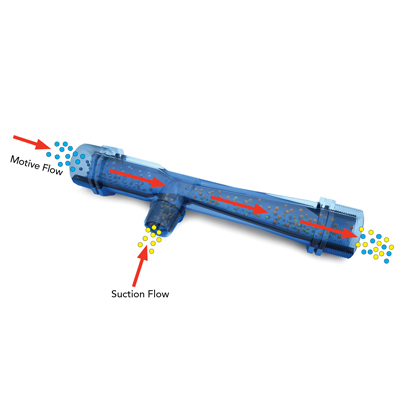

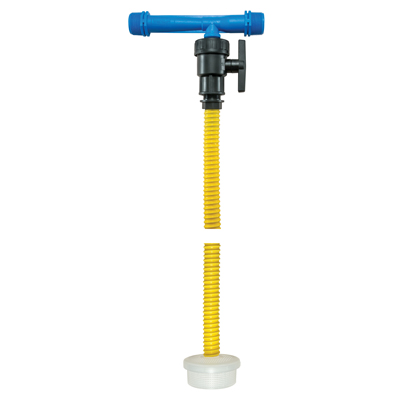

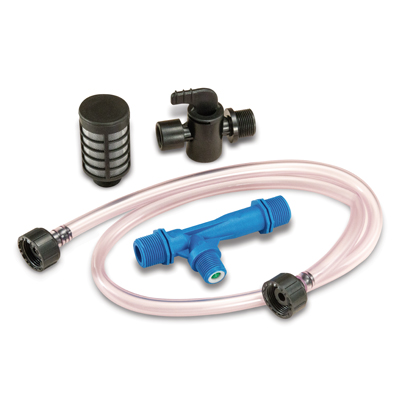

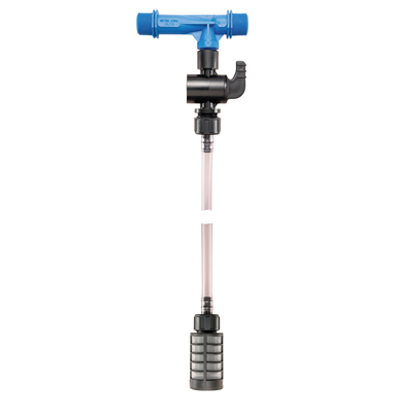

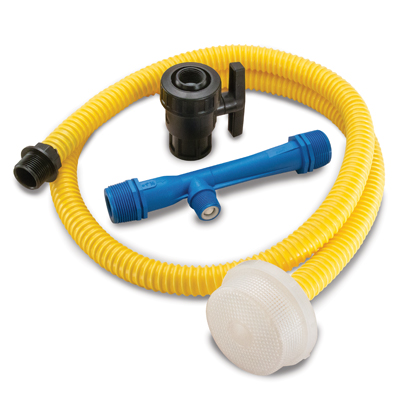

Chemline IN Series injectors are used mostly for agricultural fertigation. These quality units are moulded in rugged PPG (glass reinforced polypropylene) and are resistant to fertilizer and agricultural chemicals. The injectors use a venturi tube principle to produce suction at the center port. They have no moving parts so do not need maintenance. No external energy source is required. Suction kits are available, including a length of tubing, end strainer and valve for suction flow control.
-
Size:1/2", 3/4" & 1"
-
Ends:Threaded
-
O-Rings:Nitrile
1/2", 3/4" & 1"
Threaded
Nitrile
Features & Benefits
- Maximum Pressure Rating at 80 Degrees C (176 Degrees F)
290 psi (20 bar) - Maximum Temperature
80 Degrees C (176 Degrees F)
Technical Documents
Commonly used in these markets
Environmental
Process Industrial
Irrigation & Fertigation
Utility Water
