Hybrid PFA or PVDF Lined Composite Ball Valves – HB Series

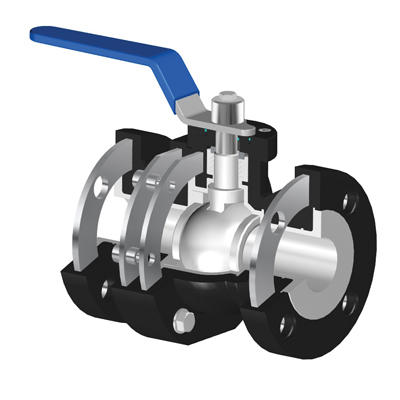

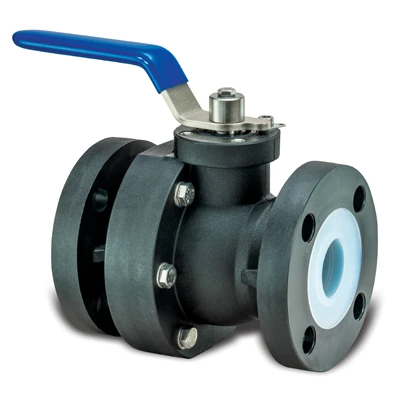

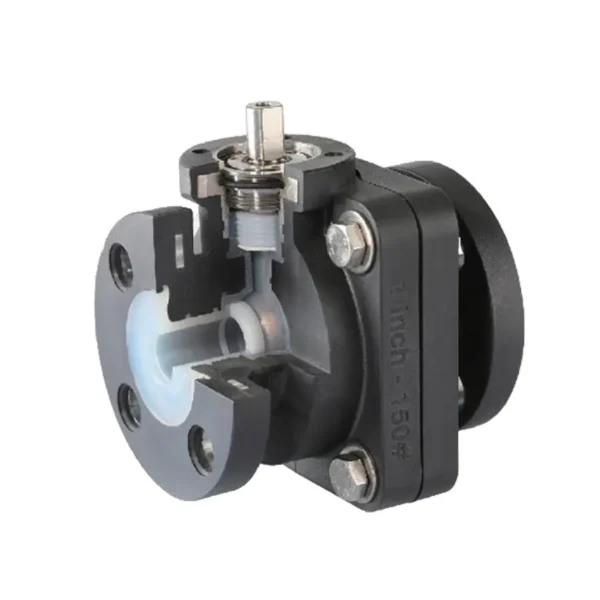

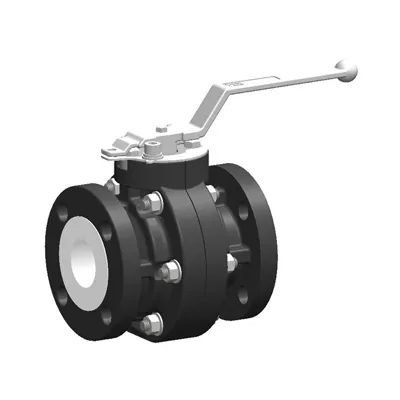

The Chemline HB Series HYBRID ball valve is a composite valve with internal steel reinforcement, fully lined with PFA or PVDF. These full port valves are perfect for composite, alloy or lined steel piping. The plastic/metal hybrid construction offers the chemical resistance and toughness of plastic along with the strength of metal.
-
Size:1″ to 1-1/2″
-
Ends:Flanged
-
Body:PPG, PPSG Composite
-
Lining:PFA, PVDF
-
Seals:PTFE
-
Operation:Manual, Electrically, Pneumatically Actuated
1″ to 1-1/2″
Flanged
PPG, PPSG Composite
PFA, PVDF
PTFE
Manual, Electrically, Pneumatically Actuated
Features & Benefits
- High Working Temperatures
PPG valves maximum 266ºF (130ºC)
PPSG valves maximum 320ºF (160ºC) - 150 psi Pressure Rated
See pressure/temperature graph - Corrosion Resistant Inside and Out
All inside wetted parts are fluoropolymer
Valve exterior is composite - For Composite Alloy and Lined Steel Piping
Light enough for composite piping systems
Strong enough for alloy or lined steel piping - Easily Serviceable
Two piece design
Easy disassembly to replace parts - Easy to Actuate
Valve top flange and shaft dimensions are to ISO 5211 dimensions
Electric or pneumatic actuator may be direct mounted without brackets and couplings
