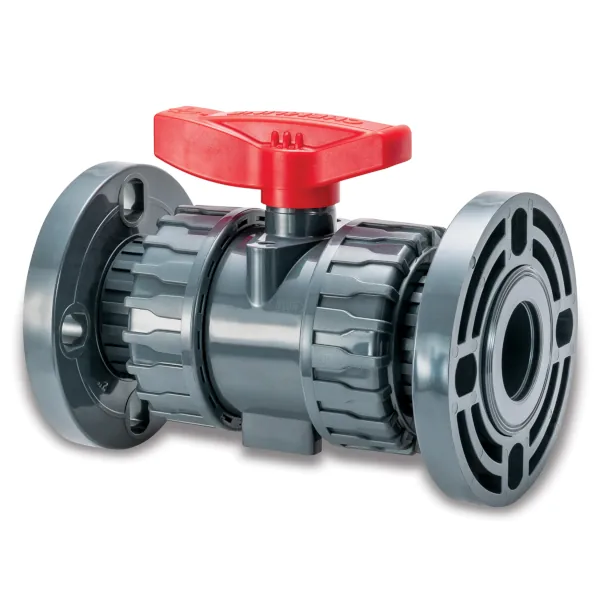

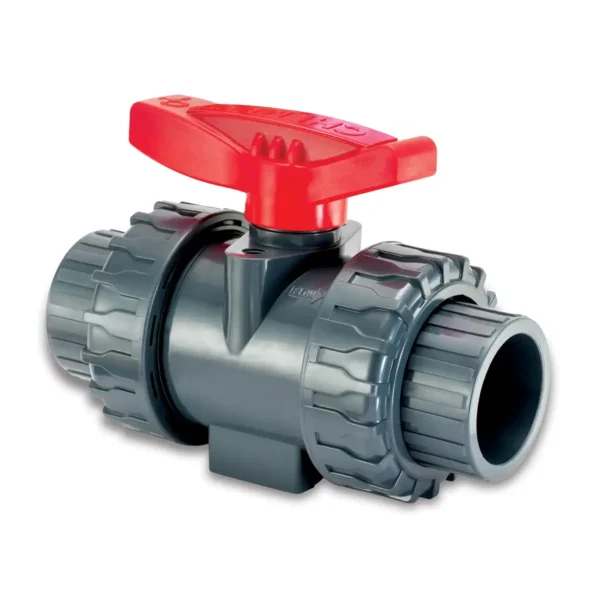

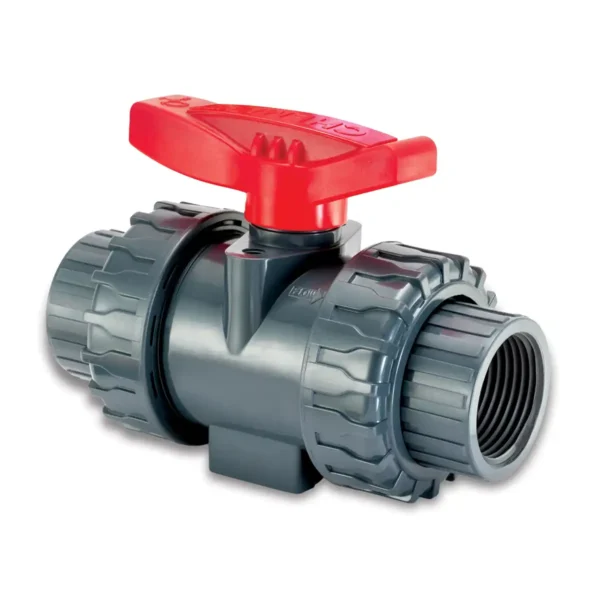

True Union Ball Valves – Type 20

Chemline’s Type 20 is a general purpose True Union ball valve available in PVC and CPVC. The Type 20 have features of high-end valves without the high price. They are competitively priced for pools, fountains, irrigation and fertigation applications.

Polyvinyl Chloride
Chlorinated Polyvinyl Chloride
  • Size:
    1/2" to 4"
  • Ends:
    Socket, Threaded or Flanged
  • Body:
    PVC, CPVC
  • Seats:
    PTFE
  • Seals:
    EPDM, FKM (Viton®)
Size

1/2" to 4"

Ends

Socket, Threaded or Flanged

Body

PVC, CPVC

Seats

PTFE

Seals

EPDM, FKM (Viton®)

Features & Benefits

  • NSF Approval
    PVC and CPVC valves with EPDM or FKM (Viton®) seals are certified under NSF/ANSI Standard 61 for contact with drinking water
  • True Union Design
    Installation and maintenance is fast and inexpensive.
    Valves may be rotated 360 degrees to position handle.
  • Fully Blocking
    Downstream union nut may be safely disassembled for piping maintenance while valve is closed off under full pressure.
  • Double Stem O-Rings
    Provide for high degree of safety.
  • 150 psi Working Pressure

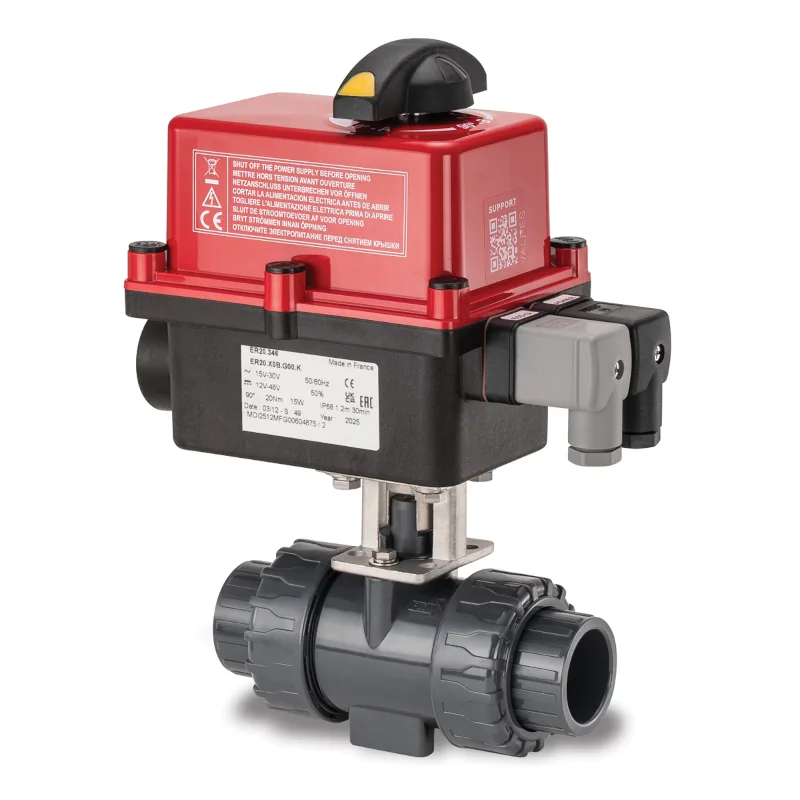

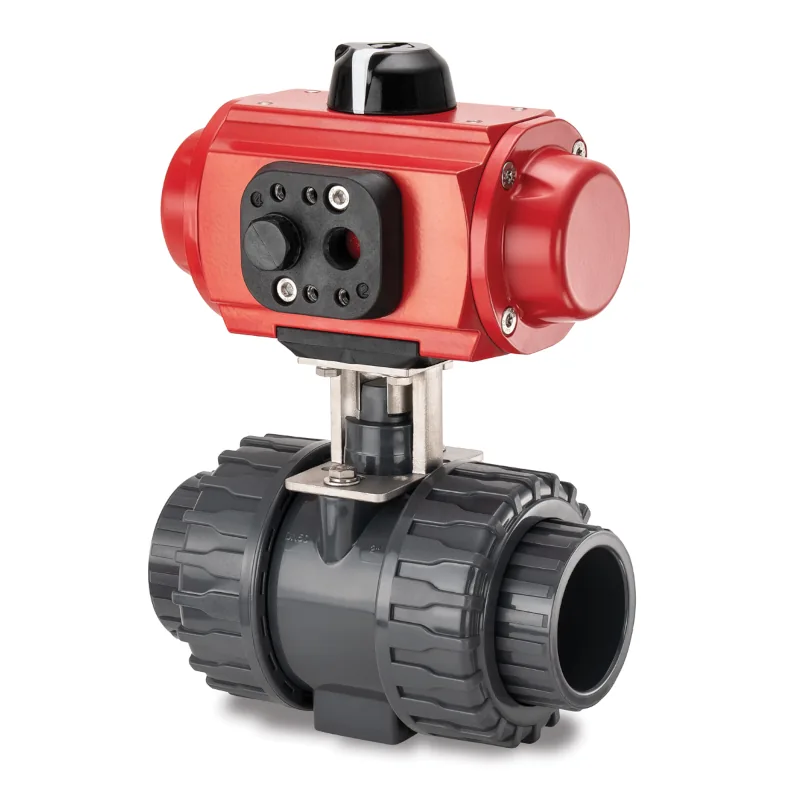

  • Easy to Actuate
    Electric or pneumatic actuators may be easily mounted using ISO standard mounting kits.
  • Panel Mountable
    Optional threaded inserts in valve base allow valve to be securely anchored to panel or support.

Commonly used in these markets

Irrigation & Fertigation Markets

Irrigation & Fertigation

Pools, Water Park Markets

Pools, Water Parks

Utility Water Markets

Utility Water
