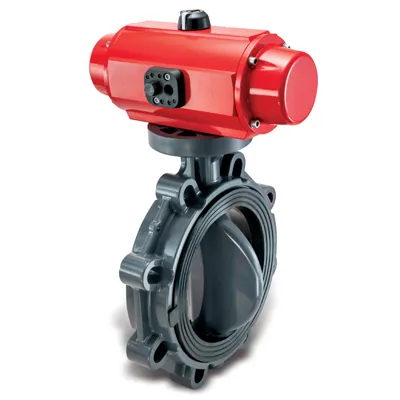

Elastomer Seated Butterfly Valves – Type 61
The Chemline Type 61 elastomer seated butterfly valves are designed for a wide range of industrial ON/OFF and throttling applications. The patented streamlined disc is designed for excellent flow characteristics. Top flange and shaft dimensions are to ISO 5211 standard for easy mounting of actuators. A large selection of discs make these valves an excellent choice for many plastic pipe materials.
-
Size:2-1/2" to 8"
-
Body Type :Wafer
-
Body:PVC, PP
-
Disc:PVC, PP, CPVC, PVDF, ABS
-
Seats & O-Rings:EPDM, FKM (VitonĀ®)
-
Shaft:316 SS, 420B
2-1/2" to 8"
Wafer
PVC, PP
PVC, PP, CPVC, PVDF, ABS
EPDM, FKM (VitonĀ®)
316 SS, 420B
Features & Benefits
- Easily Installed and Maintained
Compact and light weight.
Bolt holes make installation and alignment easy.
Seat is easily replaceable. - Full Seat Design
Flange gaskets are not required. - Streamlined Disc
Higher Cv values.
More linear, better flow control. - Choice of Shaft Materials
The 316 SS conforms to popular valve specifications and is proven for critical and aggressive services.
The 420B SS is chosen for non-hazardous fluids. Valve costs are lower. - Easy Actuator Mounting
Valves have standard ISO 5211 top flange and shaft dimensions. - Abrasion Resistant
PP disc offers good abrasion resistance.
PVDF disc offers excellent abrasion resistance. - NSF
NSF/ANSI Standard 61 certified for contact with drinking water.
Commonly used in these markets
Environmental
Process Industrial
Chemical, Storage & Transport
Aquatic Life Support
Irrigation & Fertigation
Pools, Water Parks
Utility Water
