Stubbe Pumps

ASV Stubbe Partner
Series: SHB, SHM, NX, and ETLB-S
Sizes: 1/2″ – 8″ (DN 15 – 200)
Connection: Socket, Spigot, or Flanged
Driving Rating: 0.37 kW – 250 kW
Seals: EPDM, FKM, FPM or FEP

Description

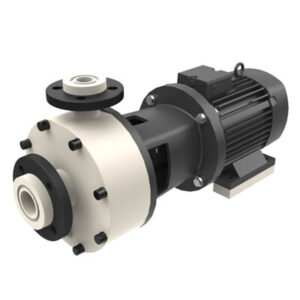

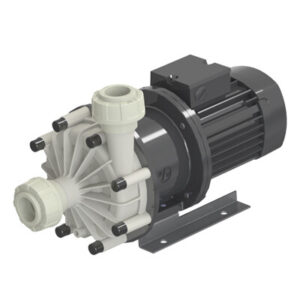

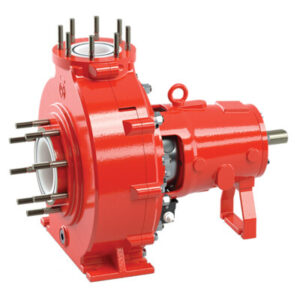

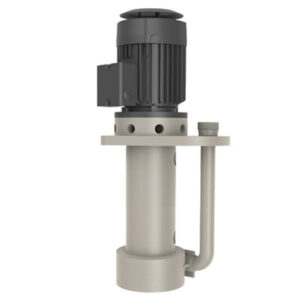

Chemline SHB Horizontal PumpSHB Chemline SHM Horizontal PumpSHM Chemline NX Horizontal PumpNX Chemline ETLB-S Vertical PumpETLB-S
Pump Type Horizontal Horizontal Horizontal Vertical
Flow Rate (Q) up to 130 m3/h up to 65 m3/h up to 1,000 m3/h up to 104 m3/h
Head (H) up to 42 m up to 27 m up to 120 m up to 36 m
Driving Rating up to 11 kW up to 7.5 kW up to 250 kW 0.37 to 7.5 kW
Nominal Size ½” to 4”

(DN 15-100)

½” to 2”

(DN 15-50)

1” to 8”

(DN 25-200)

½” to 3”

(DN 25-200)

Material PP or PVDF PP or PVDF PP-H, PE-UHMW, PVDF, PTFE/PFA PP or PVDF
Sealing EPDM or FPM EPDM or FPM EPDM, FKM, FPM or FEP EPDM or FPM
Connection Socket, Spigot or Flange Socket, Spigot or Flange Flange Socket, Spigot or Flange
SHB Series SHM Series NX Series ETLB-S Series
