Elastomer Seated Butterfly Valves – Type 58

The Chemline Type 58 Butterfly Valves are designed for ON/OFF and throttling control applications in heavy industries. They have a large size range, 1-1/2″ to 24″. All sizes have Polypropylene (PP) bodies as standard, offered at prices competitive with similar PVC body valves. A higher pressure/temperature safety factor is a bonus especially for hazardous services. Prices are much lower than similar PP body valves. A choice of disc and seat materials is available as well bodies in PVDF.
1 PVDF bodies and discs are available up to 12″;PP bodies and PVDF discs are available up to 16”
2 PVC or CPVC discs are available up to 10″
3 FKM (Viton®) or FKM-F are available up to 16″
NOTE: For PVDF bodies and discs up to 20”, PVC or CPVC discs up to 24”, FKM (Viton) seats up to 24” refer to Type 59

Pigmented Polypropylene
Polyvinylidene Fluoride
  • Size:

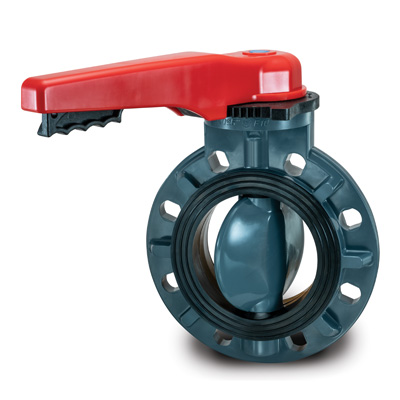

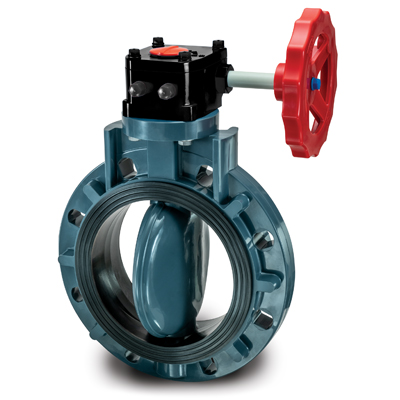

    1-1/2" to 8" Lever Operated, 1-1/2" to 24" Gear Operated
  • Body Type :
    Wafer
  • Body:
    PP, PVDF1
  • Disc:
    PP (standard), PVC2, CPVC, PVDF
  • Seats & O-Rings:
    EPDM, FKM (Viton®)3, FKM-F

Features & Benefits

  • Compact and Light Weight
  • High Corrosion Resistance
    Proven disc seal design prevents wetting of shaft.
    Solid plastic body – no rust.
    PP hand lever and plastic gear operators up to 10″.
  • Abrasion Resistant
    Solid plastic disc
    PVDF disc available for high abrasion resistance.
  • 316 SS Shaft
  • Easily Installed
    Full bolt hole circle makes installation
    and alignment easy. No gaskets are necessary.
