Disc Filters – DF Series
Disc Filters

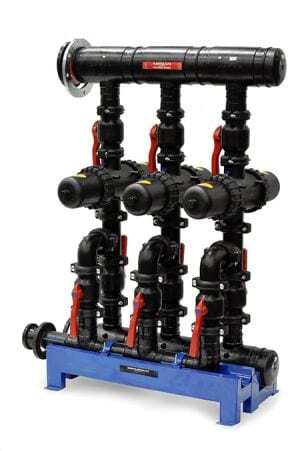

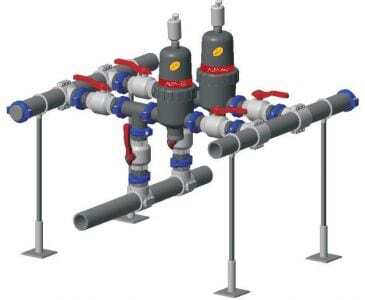

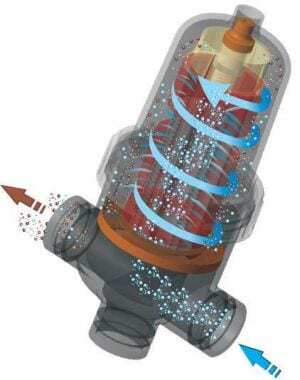

Chemline DF Series all-plastic Disc Filters contain a stack of PE filtering discs in different mesh sizes. They are cartridge type in the larger sizes (up to 329 sq. in. filtration) and Y-pattern in the small sizes (starting at 19 sq. in. filtration) The manual clean version has a special Vortix™ design which pushes impurities to the inside wall allowing easy flushing and requiring less disc cleaning. The larger AlfaMatic™ models may be back flushed automatically. These are often used for pre-filtration in water treatment systems.
-
Size:3/4" to 4"
-
Ends:Socket, Threaded, or Flanged
-
Flow Rate (Q):Polypropylene
-
Cartridge:Polypropylene
-
Materials:PPG
3/4" to 4"
Socket, Threaded, or Flanged
Polypropylene
Polypropylene
PPG
Features & Benefits
- An attractive alternative to flanged connections
Corrosion resistant
Light Weight - Two Models available
Vortix™ manual flush model designed for less frequent cleaning
AlfaMatic™ automatic back flush model - Ideal for pre-filtration in water treatment systems
- Three different Mesh sizes
75 mesh (200 micron)
120 mexh (130 micron)
150 mesh (100 micron) - Easy Connection
Threaded or “Victaulic” style grooved pipe ends
