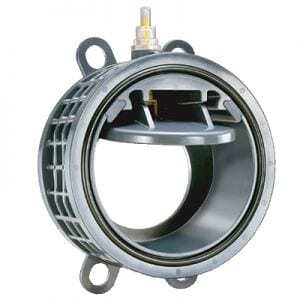

Wafer Check Valves – PW Series
The Chemline PW Series Wafer Check Valve offers high end features at reasonable cost. This wafer check does not require a separate spacer or flange gaskets. The large orifice and full flow design means low pressure drop. Spring assisted disc closure is standard as well as an optical indication of disc open/close position. A selection of body materials and elastomers allow for a wide range of applications.
-
Size:3" to 10"
-
Body:PVC, PP, PPG, PVDF
-
Seals:EPDM, FPM (VitonĀ®)
-
Spring:304 Stainless Steel
Features & Benefits
- Large Flow Capacity
Low Pressure Drop. - High Pressure Ratings
150 PSI rated up to 10″. - NSF 61 Approved Materials
PVC/EPDM and PVDF/EPDM valves are made of NSF approved materials. - Can be Mounted Vertically or Horizontally
- Spring Assisted Valve Closing
Field installed springs assist disc closing for silent operation and to lower hammer on closing.
Two different springs installed in three configurations provide proper disc closing at
45 psi, 100 psi and 150 psi.
Springs are external, isolated from the fluid media. - Optional Drain Plug
Moulded boss may be tapped for drainage plug.
