Variable Area Flow Meters – FC & FS Series

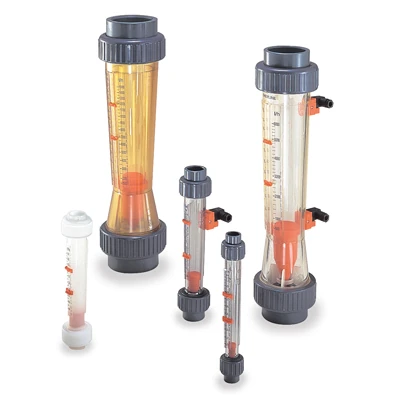

Chemline FC and FS Series Variable Area Flow Meters are ideal for plastic piping. They provide a combination of accurate visual flow rate measurement and clear flow indication from a distance. Optional limit switches allow the units to signal a low or high flow alarm. An optional flow transmitter provides a 4 to 20 mA signal output. These flow meters must be installed vertically with flow upward.
FC Series Compact: 5” Single Scale
FS Series Full Size: 7” Dual Scale
Suited for sodium hypochlorite applications
-
Size:FC Series Compact - 5" Single Scale FS Series Full Size - 7" Dual Scale
-
Ends:Socket, Threaded, Flanged, Butt, ChemFlare™
-
O-Rings:EPDM, FPM (Viton®)
-
Ball/Float:PVDF
-
Capacity:Up to 220 USGPM (50,000 litres per hour)
FC Series Compact - 5" Single Scale FS Series Full Size - 7" Dual Scale
Socket, Threaded, Flanged, Butt, ChemFlare™
EPDM, FPM (Viton®)
PVDF
Up to 220 USGPM (50,000 litres per hour)
Features & Benefits
- Clear Visual Indication
Large orange float is visible from a distance.
Range indicators slide along dovetail track. - Easy Installation and Maintenance
Just unscrew union nuts and tube slides out of line. - Choice of Four Tube Materials for Many Applications:
Clear PVC: For Water or Chemicals up to 60 Degrees C (140 Degrees F); High Chemical resistance at low cost.
Polyamide (PA): For Water or Air up to 75 Degrees C (167 Degrees F); High impact strength and optical clarity.
Polysulfone (PSU): For Chemicals and Gases up to 100 Degrees C (212 Degrees F); High impact strength and good chemical resistance.
PVDF: For Chemicals and Ultrapure fluids up to 110 Degrees C (230 Degrees F); High impact strength and excellent chemical resistance. - Ideal for All Types of Plastic Piping
All types of end connections in PVC, CPVC, PP, and PVDF - Low Pressure Drop
- Good Measuring Accuracy – Class IV
± 3% of indicated value, plus ± 1% of full scale – Read scale at top (largest diameter) of float. - Non Fouling
Float is self supporting in the flow. No guide rod (which can cause the float to jam) is necessary.
