Vented Ball Valves for Sodium Hypochlorite – Type 24

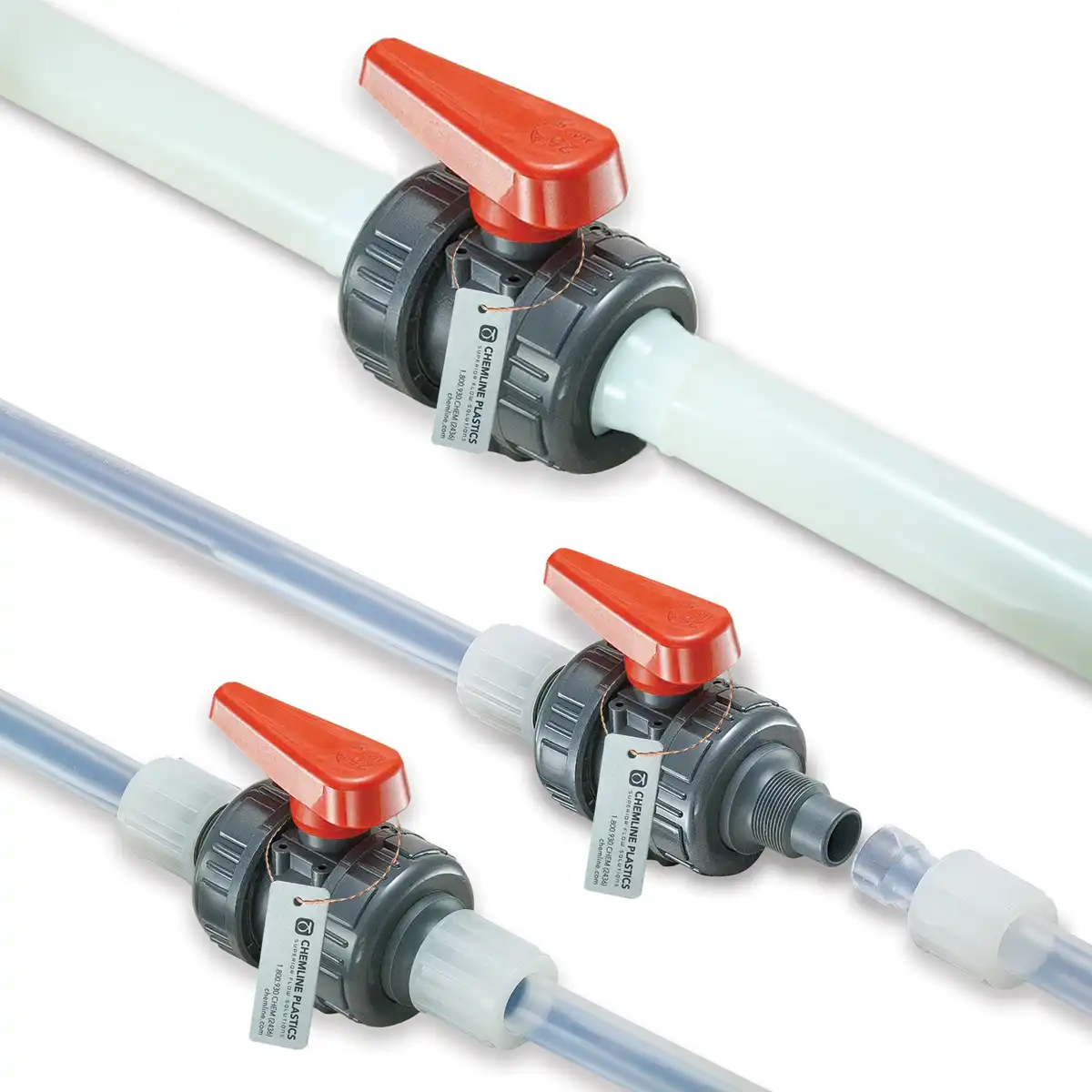

The Chemline Type 24 ball valve is a superior choice for sodium hypochlorite service. We offer both ChemFlare™ end connectors and PFA fittings for flexible tube applications and ECTFE (Halar®) butt fusion union end connections for rigid pipe applications. Both are long term leak-free systems for sodium hypochlorite applications.
The Type 24 HypoValve is the perfect addition to ChemFlare™ Tubing and ECTFE (Halar®) Piping Systems.
-
Size:1/2" to 4"
-
Ends:1/2" to 1" : Chemflare™1/2" to 4" : ECTFE (Halar®)
-
Seats:PTFE
-
Seals:FKM (Viton®)
-
Pipe Sizes:1/2" to 4"
-
Tube Sizes:1/4" to 1"
Features & Benefits
- Full Valve Working Pressure of 230 psi
- Full Port
High capacity and low pressure drops. - Full Blocking
Downstream union nut may be safely disassembled for piping maintenance while valve is closed off under full system pressure. - Built-In Spanner Wrench
Top of the handle is designed to be used as a tool for accessing internal parts. - Safety Shear Stem Design

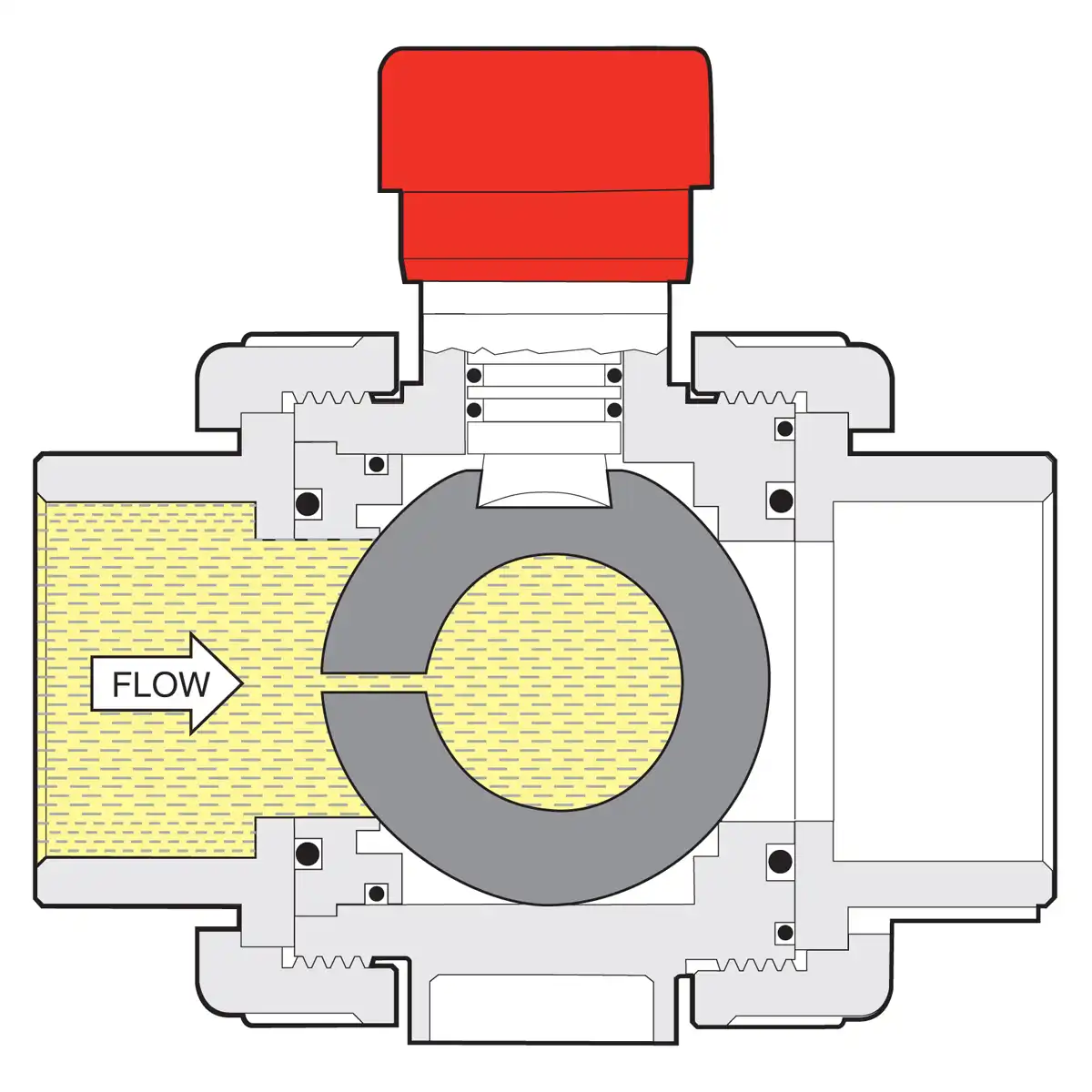

Double Stem o-ring Design allows valve to hold full pressure even if stem breaks due to excessive torque. - Vented Ball
Recommended for all sodium hypochlorite services.

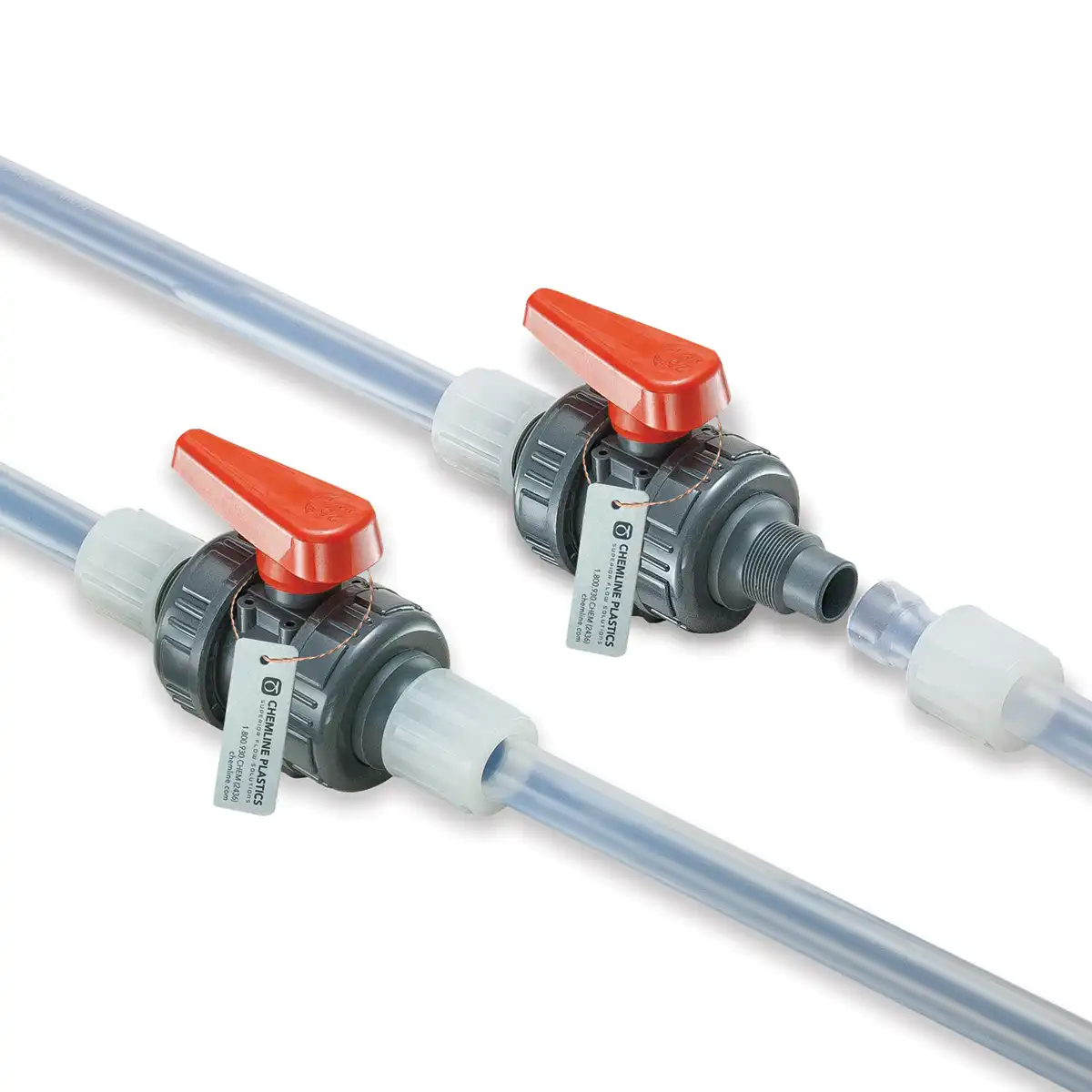

With ChemFlare™ system
- Weldless Design
Eliminates all fusion welds and cemented joins
Threaded connection between flared end and tube nut is not wetted - Easy Installation
Flaring the tube ends is easy
Assembly is by hand - Low Down Time
No welding or curing waiting time. The system may be pressure tested immediately. - Minimum Dead Volume
The flared tubing connection has minimum dead volume desirable on sodium hypochlorite and ultrapure applications.

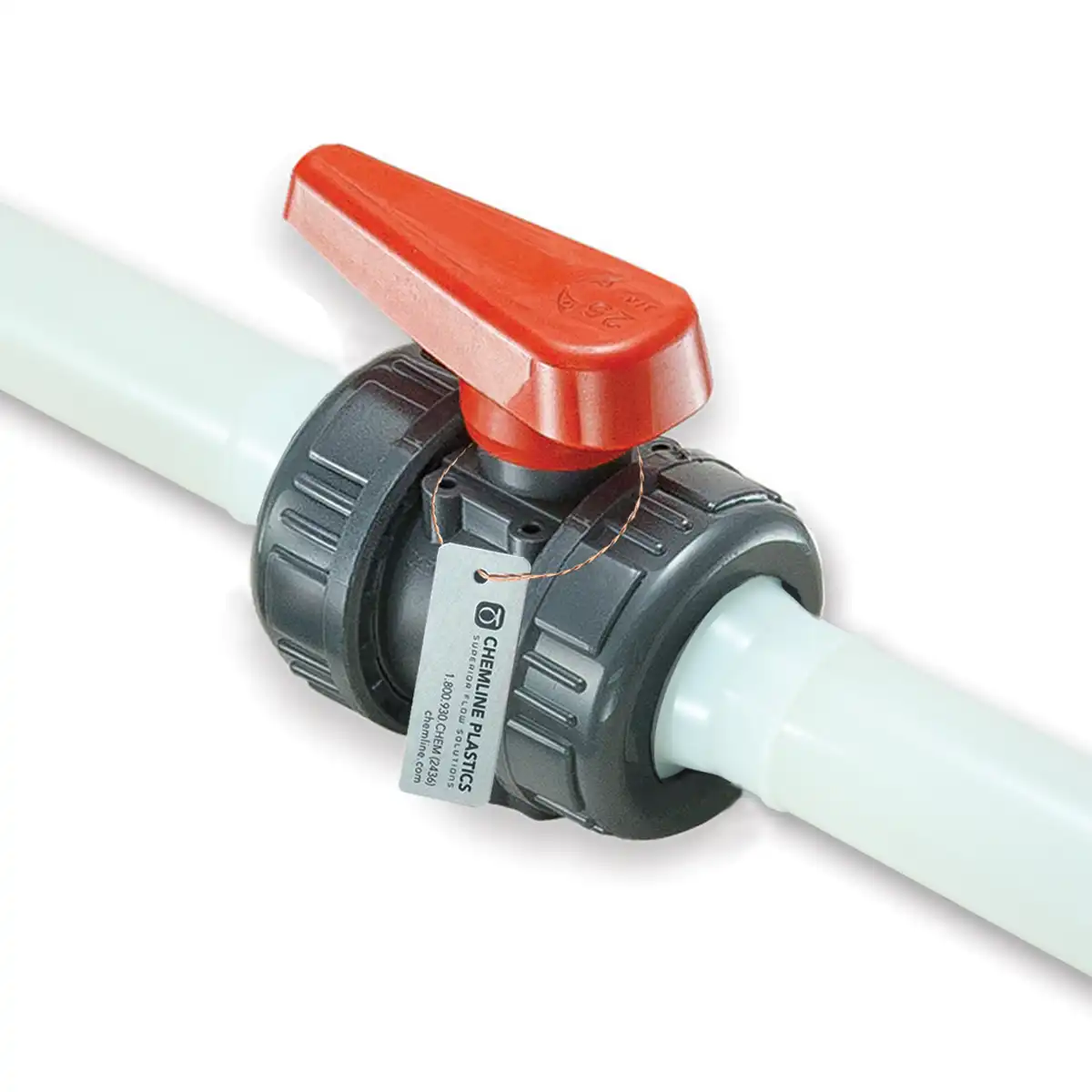

With ECTFE (Halar®) system
- Butt Fusion Design
O-ring seal at valve face, with direct fusion to Chemline piping
Guaranteed leak-free design
No wetted threads or cemented joints - Low Down Time
Low wait time, the system may be pressure tested in minutes, not hours
