Thermoplastic Manifolds – MN Series

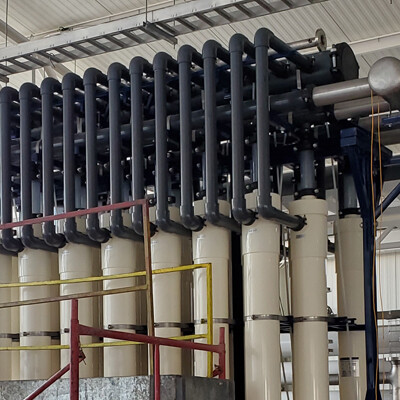

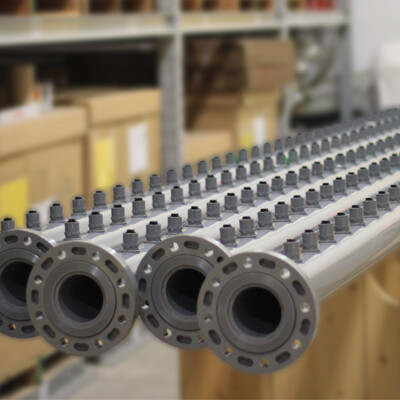

MN Series Thermoplastic Manifolds
The Chemline MN Series plastic manifolds provide a superior alternative to metal manifolds in many applications. State of the art CNC welding technology guarantees higher quality and reliability than socket fusion, hand welding or cementing, aiding retention of the component piping pressure rating in most cases, and all units are pressure tested to meet customer requirements. Various end connections are available to allow easy mating to any piping system, whether cemeted, threaded, flanged, grip and groove.

Chemline fabricates manifolds in a wide variety of thermoplastics, pipe sizes, configurations and end connections by CNC machine. The resulting product is stronger, more reliable, more dimensionally accurate and more cost effective than steel for production runs.

Polyvinyl Chloride
Chlorinated Polyvinyl Chloride
Pigmented Polypropylene
Polyethylene
Polyvinylidene Fluoride
Ethylene Chlorotrifluoroethylene
  • Size:
    3" to 12"
  • Ends:
    Plain, Threaded, Socket, Grooved or Capped
Size

3" to 12"

Ends

Plain, Threaded, Socket, Grooved or Capped

Length

Lever

Gear

Body Type

Class

Spigot Bodies

Body

Valve Type

Disc

Lining

Seats

Seat Backups

Seals

Seats & Orings

Shaft

Spring

Diaphragm Materials

Operation

O-ring

Types

Shaft Seal

Body Seals

Inlet Connection

Seats-seals

Connections

Reinforcement Ring

Features & Benefits

  • CNC Welding Technology
    CNC saddle / butt fusion results in the capability of welding more types of branches with stronger,more reliable and more accurate welds than other technologies such as socket fusion, hand welding or cementing.
  • Design Validation
    Validation of unique customer designs for production through destructive and impact tests, and pressure testing of sample pieces to guarantee high product quality and reliability.
  • Stringent Quality Control
    Computer control of all welding aspects, and pressure testing, result in products capable of meeting customers quality control and reporting standards including PPAP and other schemes. Verification of finished manifold dimensions for confirmation of manufacturing accuracy.
  • Weld Traceability
    Downloadable welding parameters are recorded for each weld and saved for customer traceability.
  • Repeatability
    Welding parameters are saved on computer for reproduction of identical manifolds.
