BC/BT Ball Check & FT/FV Foot Valves – Series BT/BC/FT/FV
BC/BT Ball Check & FT/FV Foot Valves
Chemline BT/BC Series Ball Check Valves have a wide selection of body and seat materials. It has good flow capacity and will handle many slurry and suspended solid services. This valve works in both horizontal and vertical lines. The Foot Valve is for end of line services such as sumps.

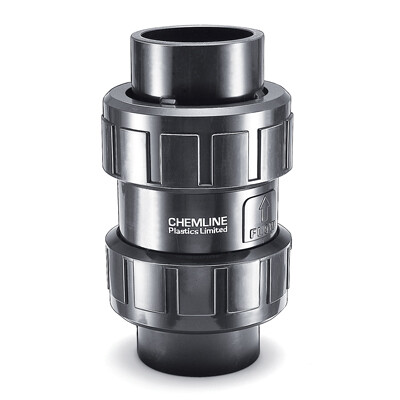

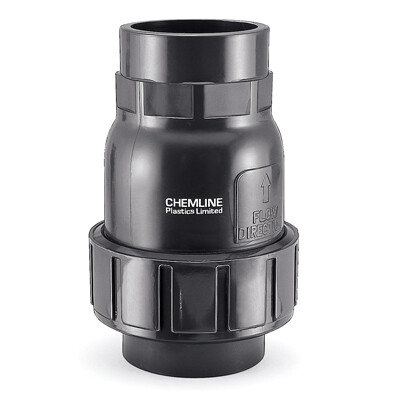

BC/BT Series Check Valves
The BT Series (True Union) and BC Series (Single Union) Ball Check Valves is the most popular type of non-return valves for pipe sizes up to 4″.

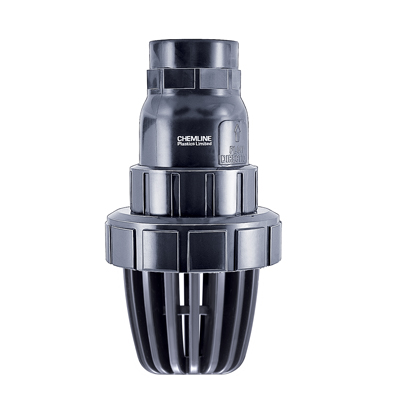

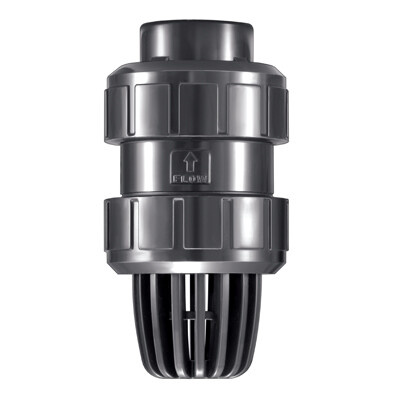

FT/FV Series Foot Valves
The Foot Valve is available in true union up to 2″ and up to 4″ in Single Union.
-
Size:BT: True Union Check (1/2" to 2")
BC: Single Union Check (2-1/2" to 4")
FT: True Union Check (1/2" to 2")
FV: Single Union Check (2-1/2" to 4") -
Ends:Threaded, Socket, Flanged, Butt, ChemFlare™
-
Body:PVC, CPVC, PP, PVDF
-
Seats & O-Rings:EPDM, FKM (VitonĀ®)
Features & Benefits
- May be used either horizontally or vertically
- Low seating and opening pressures
- Built-in Union Design
For easy installation and maintenance. - Free Floating Ball
The only moving part. - Uni-seat/Seal
Easily removable.
