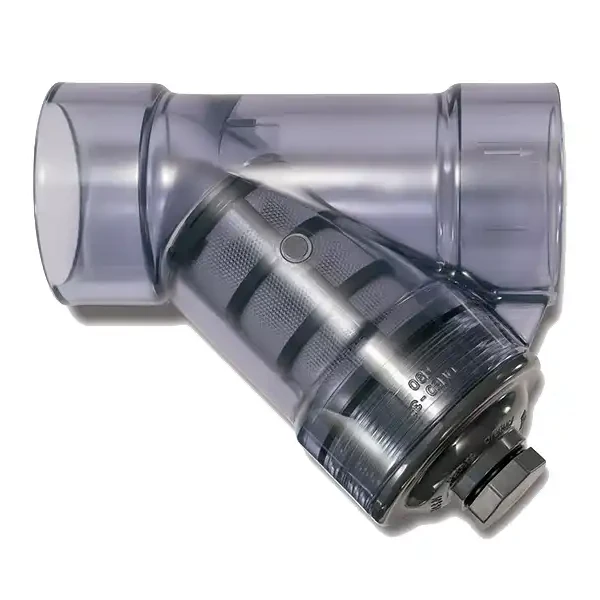

Y Sediment Strainers – YT Series
Chemline YT Series Y Sediment Strainers are moulded in clear PVC and CPVC. They act as a safety filtration device entraping occasional solid impurities in the line. This is to protect equipment with small orifices such as solenoid and control valves, and prevent fouling of chemical dosing systems using diaphragm or peristalic pumps. The easily replaceable filter screen comes in a choice of meshes. Large filtration areas ensure pressure drops are low.
Suited for sodium hypochlorite applications
-
Size:2-1/2" to 4"
-
Ends:Socket or Flanged
-
Seals:EPDM, FKM (Viton®)
2-1/2" to 4"
Socket or Flanged
EPDM, FKM (Viton®)
Features & Benefits
- Clear PVC Bodies
Permits inspection - Opaque CPVC Bodies
For high temperatures and chemical resistance - Large Filtration Capacity
The large filtering area results in high filtration capacity and low pressure drops. - Flush Port is Supplied Standard

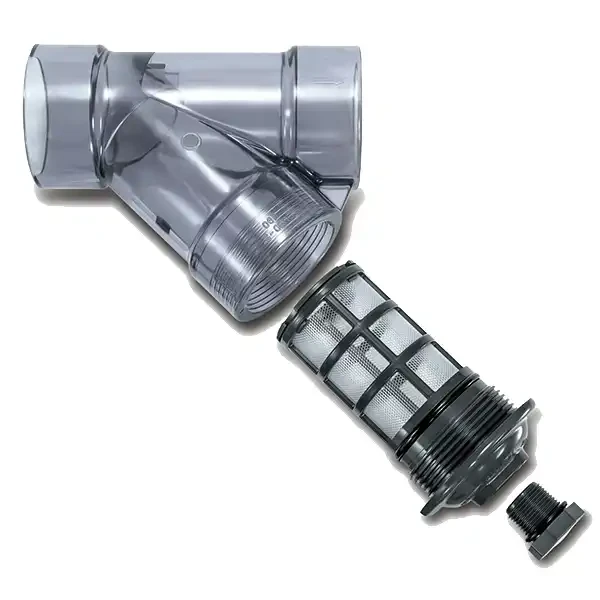

1/2″ NPT port and plug with o-ring - Replaceable Filter Screens
12 mesh filter screen is standard

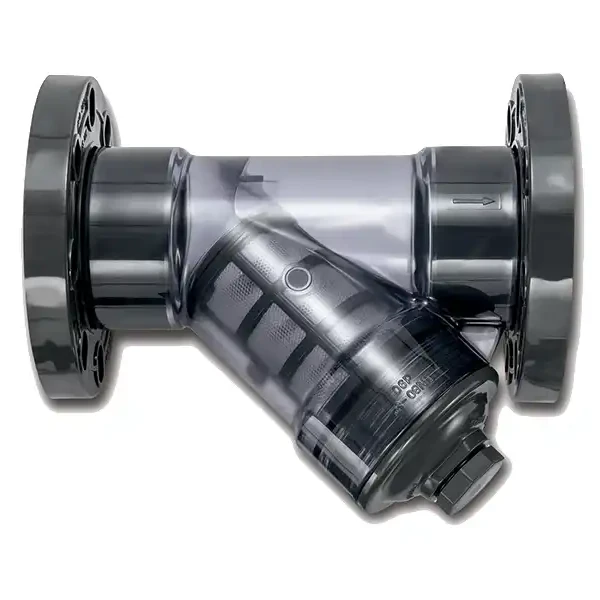

20, 35 and 56 mesh sizes are available in 316 SS, other sizes on request - Compact Rotating Flanged Ends
Flanges are compact rotating ring type. May be positioned to easily match up with pipeline flanges
Face-to-face “L” length is shorter than with standard one-piece socket flanges
