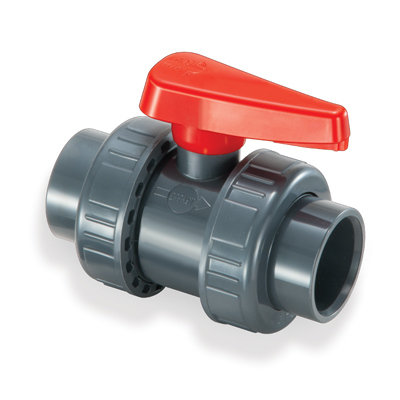

True Union Ball Valves – Type XLT

The Chemline Type XLT PVC True Union Ball valve is a general purpose manual valve for water and light duty chemical services. It has all the features you are looking for. The True Union body makes installation fast and maintenance convenient. XLT offers high quality at value pricing. For electric or pneumatic actuation refer to Type 24 ball valves.

Polyvinyl Chloride
  • Size:
    1/2" to 4"
  • Ends:
    Socket, Threaded, Flanged
  • Body:
    PVC
  • Seats:
    PTFE
  • Seals:
    EPDM, FKM (VitonĀ®)

Features & Benefits

  • 230 PSI Working Pressure
    230 PSI for 1/2″ – 2″, 150 PSI for 2-1/2″ to 4″.
  • True Union Design
    Installation and maintenance is fast and inexpensive. Valves may be rotated 360 degrees to position handle.
  • Fully Blocking
    Downstream union nut may be safely.
    disassembled for piping maintenance while valve is closed off under full system pressure.
  • Full Port
    Low pressure losses.
  • Double Stem O-Rings
    Reduces the possibility of stem leakage.
  • NSF
    Valves are certified to NSF/ANSI Standard 61 for contact with drinking water.

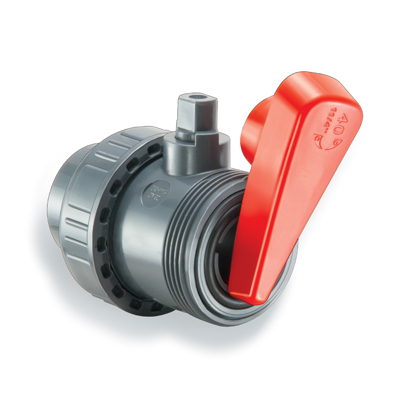

  • Built-In Spanner Wrench
    For removing or tightening the seat carrier.

Commonly used in these markets

Chemical, Storage & Transport Markets

Chemical, Storage & Transport

Aquatic Life Support Markets

Aquatic Life Support

Irrigation & Fertigation Markets

Irrigation & Fertigation

Pools, Water Park Markets

Pools, Water Parks

Utility Water Markets

Utility Water
