| Series: | ER10 – 90 in.lb | |
| ER20 – 180 in.lb | ||
| ER35 – 310 in.lb | ||
| ER60 – 530 in.lb | ||
| ER100 – 880 in.lb | ||
| Size Range: | Up to 4″ Ball Valves | |
| Up to 4″ Butterfly Valves | ||
| Voltages: | 24, 115 /220 VAC, 12/24 VDC | |
| Enclosure: | Polyamide 6.6 | |
| NEMA 4X | ||
    |
||
Description

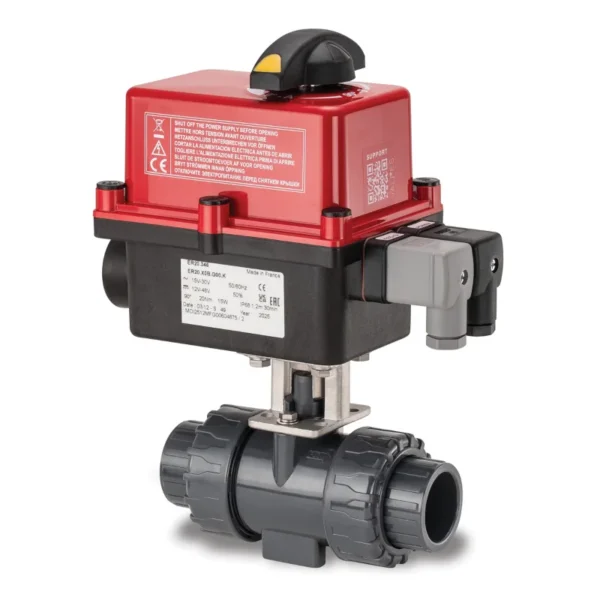

ER-Series Electric ActuatorsThe Chemline ER Series Electric Actuator is a reversible rotary unit with output torques up to 880 in.-lb. These units are ideal for all Chemline ball and butterfly valves up to 4″. The E Series is compact, light weight and has a plastic housing. A large black handle provides manual override and position indicator. Chemline also offers complete actuated ball, butterfly and diaphragm valves, assembled and bench tested. Actuation service is also available for all quarter-turn metal valves. |
✓ Multiple Approvals and Compliances
CSA, CE, EAC, RoHS
✓ No Maintenance
Permanently lubricated gear train, Designed for 250,000 + cycles
✓ NEMA 4X Plastic Housing
Waterproof, corrosion proof with high impact Polyamide 6.6 housing and stainless steel fasteners
✓ ISO Mounting Dimensions
✓ Thermal Overload Protection
Thermal switch embedded onto control board
✓ Extended Operating Temperature Range
–10 to 60C (15 to 140oF) (standard)
✓ Irreversible Gearing
No accidental backing off fully closed position, No need for supplementary braking |
