F6.60M/F6.61M/F6.63M Electromagnetic Flow Transmitters

PVDF316L SS
Series: F6.60M/F6.63M/F6.61M (Hot-Tap)
Electrodes: 316L SS, or CuNi Alloy
Seals: EPDM, Viton
Pipe Sizes: 1/2″ – 24″ (F6.60M/F6.63M)
2″ – 36″ (F6.61M)
Flow Ranges: 0.05 to 8 m/s (F6.60M/F6.61M)
0.15 to 8 m/s (F6.63M)

Description

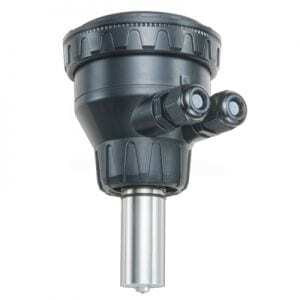

F6.60M/F6.61M/F6.63M Electromagnetic Flow Sensors

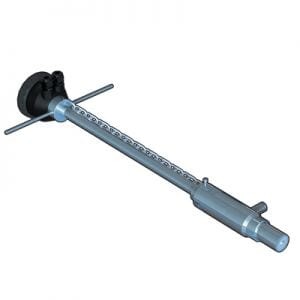

F6.60M/F6.63M and F6.61M are insertion type blind transmitters with a 4 to 20 mA analog output signal and a Solid State Relay, selectable as MIN / MAX alarm, Volumetric/ Pulse Output, Window alarm. These units will handle solids and higher viscosity fluids and are not affected by ferrous particles which can foul the magnetic rotors of the paddle wheel type. The Type F6.60M is the standard installation version and F6.61M is the Hot-Tap version. Hot-Tap function allows sensor insertion and removal while the pipe is pressurized.

Standard Sea Water High Temperature
Body Materials: 316L SS, PVDF CuNi Alloy, PVDF 316L SS, PEEK*
Electrodes: 316L SS CuNi Alloy 316L SS
Seals: EPDM, Viton® EPDM, Viton® Viton®
Pipe Sizes: F6.60M/F6.63M: 1/2” to 24”, F6.61M: 2” to 36”

Connectable Instruments: Panel/Wall Mount – M9.02, M9.10, M9.50

✓ Low Maintenance
✓ Will Handle Slurries and High Viscosity
✓ For Both Plastic and Metal Pipes

Technical

Compatibility

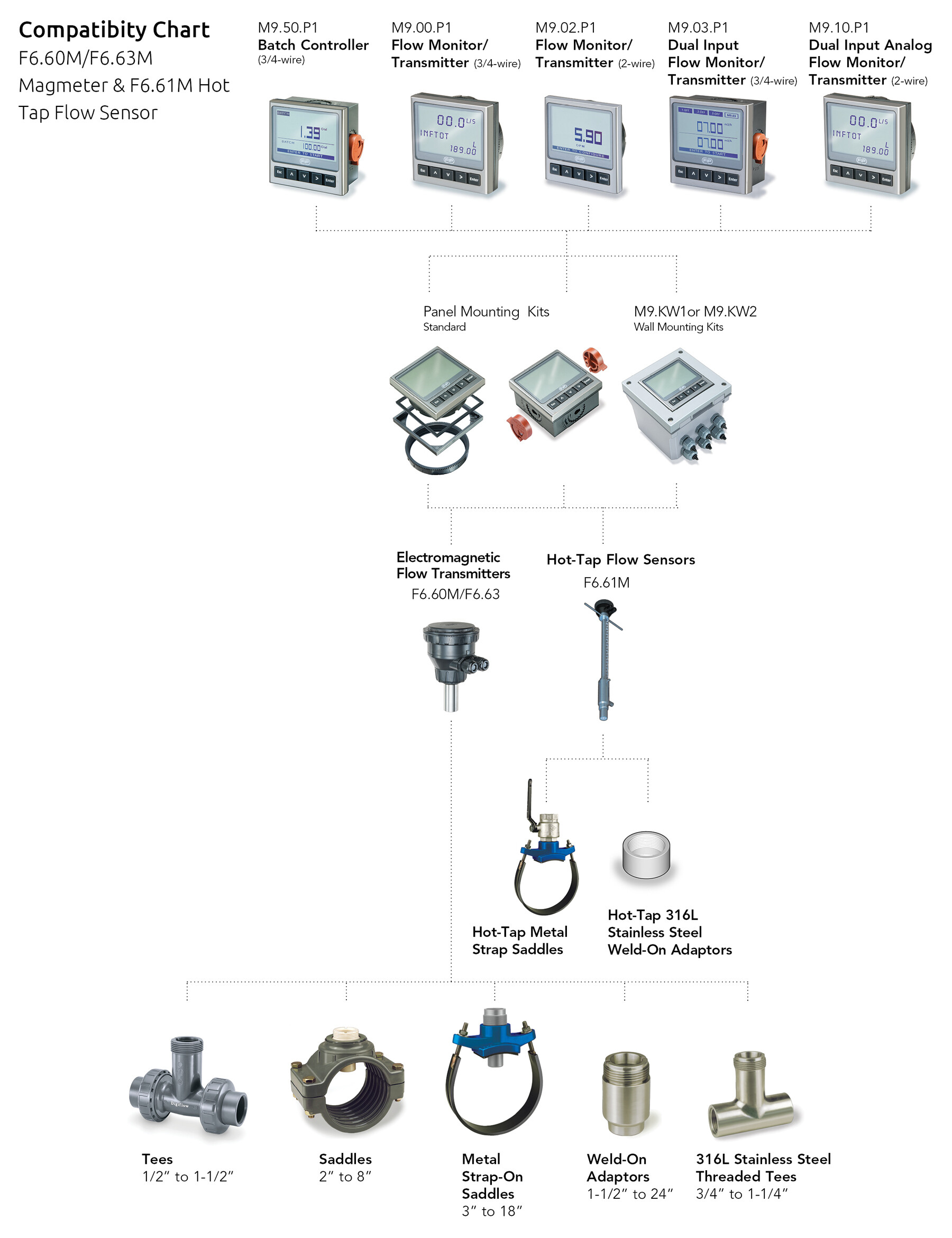

Type F6.60M/F6.63M, F6.61M F6.60M/F6.63M, F6.61M Compatibility Chart

Instruments

Connectable Instruments: Panel/Wall Mount – M9.02, M9.10, M9.50
Instrument M9.02.TM9.02 M9.10.TM9.10 M9.50.TM9.50
Compatibility Chart
Power Supply 12-24 VDC 12-24 VDC 12-24 VDC
Digital Outputs 2 x SSR 2 x OC 2 x SSR
Analog Outputs 4-20 mA 2 X 4-20 mA 4-20 mA
Wiring 3/4-wire 3/4-wire 3/4-wire
Mechanical 1 X SPDT 2 X SPDT 2 X SPDT

Fittings

Installation Fittings Size Materials Pressure Temperature
Tees Socket Threaded Flanged 1/2" to 1-1/2" Body: PVC, PP, PVDF Seals: EPDM, Viton 150 psi @ 20C (70F)
Bolt-On Saddles 1-1/2" to 12" Body: PVC Insert: CPVC, PVDF Seals: EPDM, Viton, Nitrile 150 psi @ 20C (70F)
Weld-On Adaptors 1-1/2" to 24" 316 SS Carbon Steel PE Other materials are available 365 psi with metal F3.00 sensor
316 SS FNPT Tees 3/4" to 1-1/4" 316 SS 365 psi with metal sensor
MSS HT.T Hot-Tap Fittings and Saddles for F6.61M only 3" to 18" Body: Cast Iron/SS Insert: PVC Seals: Nitrile 150 psi @ 20C (70F)
Plugs for Installation Fittings Body: PVC, CPVC, PP, PVDF Seals: EPDM, Viton

Pricing

Click below for detailed product information including pricing, availability, and additional supporting documentation.
Seals Body Material
316L SS w/ PVDF (Standard) CuNi Alloy w/ PVDF (Sea Water) 316L SS w/ PEEK* (High Temperature)
EPDM -
Viton
