Industrial ECTFE “Halar” Single Wall Piping Systems

ECTFE
Pressure Range: 18 PSI at 95°C – 153 PSI at 10°C
Pipe Sizes: 20mm – 110mm

Description

Industrial ECTFE (Halar)

Excellent resistance to mineral and oxidized acids, alkaline, metal etching products, liquid oxygen, chlorine and all organic solvents. Exceptions are hot amines, sodium and potassium. High impact resistance, High abrasion resistance, High resistance to UV and gamma radiation, High pressure load resistance, High insulating and electrical resistance properties, High flame retardancy, High resistance to microorganism growth, Low frictional resistance. An excellent choice for sodium hypochlorite chemical feed systems. Life expectancy is 25 years on sodium hypochlorite service.

Applications:
High-purity water systems
Chemical process piping
Sodium hypochlorite chemical feed
Hot caustic solutions

Temperature Range: -76°C to 150°C

✓ High Impact Resistance

✓ High Flame Retardancy

✓ Excellent Resistance to Mineral and Oxidized Acids

✓ High Resistance to Microorganism Growth

Technical

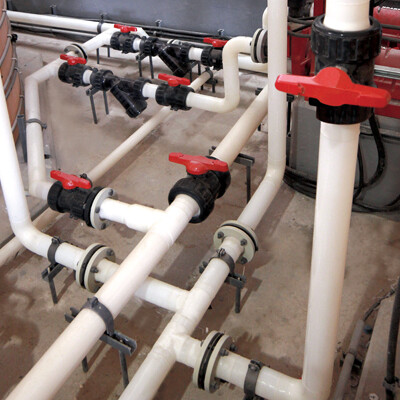

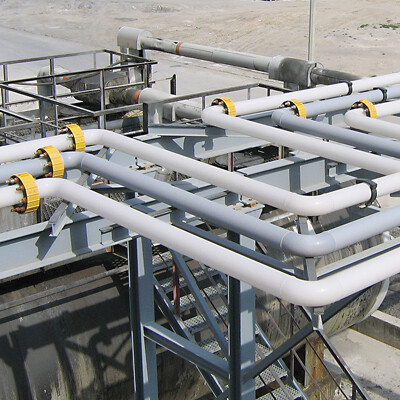

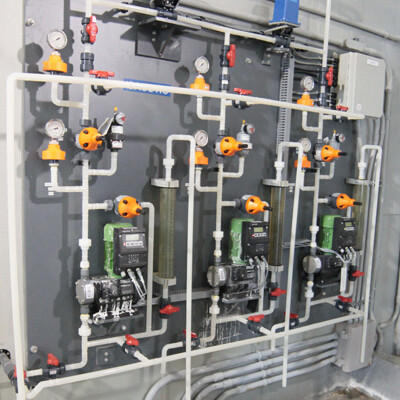

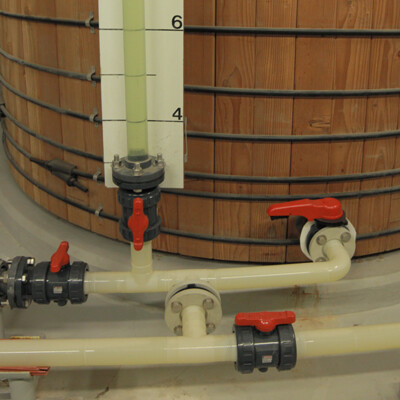

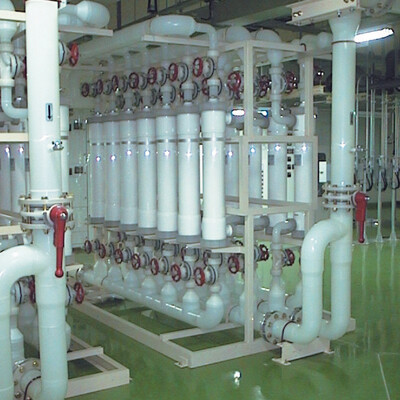

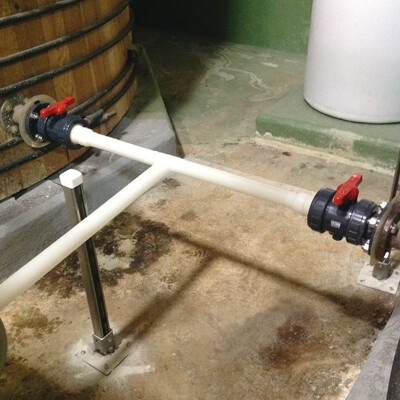

Installs

previous arrow
next arrow
Shadow
Slider

Welders

Butt Fusion Welders:

Miniplast – Sizes 20mm to 110 mm (1/2″ to 4″)

Maxiplast – Sizes 20mm to 160 mm (1/2″ to 6″)

W-Series – Sizes 50mm to 630 mm (1-1/2″ to 24″)

Non-Contact (IR) Fusion Welders:

IR Miniplast – Sizes 20mm to 110 mm (1/2″ to 4″)
SP-110S – Sizes 20mm to 110 mm (1/2″ to 4″)

Socket Fusion Welders:

HSOC – Sizes 20mm to 63 mm (1/2″ to 2″)

W-3511 – Sizes 20mm to 110 mm (1/2″ to 4″)

Valves

The Chemline Type 21 HypoValve ball valve with ECTFE (Halar) butt fusion ends for rigid pipe applications is the choice for sodium hypochlorite applications. It offers long term, maintenance and leak-free service and is easy to install. The HypoValve is available ½” to 1” and has all the high quality Type 21 features, plus a vented ball, stainless steel valve tag and a yellow handle indicating sodium hypochlorite service.
The Chemline SB10/11 HypoValve back pressure/relief valve with ECTFE (Halar) butt fusion ends for rigid pipe applications is the choice for sodium hypochlorite applications. It offers long term, maintenance and leak-free service and is easy to install. The HypoValve is available ½” to 1” and has the ability to operate with lower quality chemical where other valves fail.
