Industrial PVDF Single Wall Piping Systems

PVDF
Pressure Range: 15 PSI at 120°C – 198 PSI at 20°C
Pipe Sizes: 16mm – 400mm

    Request Info:






    Price & DeliveryApplication/ Product Assistance


    ImmediateUpcomingFor Reference



    Opt-inOpt-out

    *Indicates a Required field*

    Description

    Industrial PVDF

    High operating temperature, Good mechanical properties, High heat aging stability, Good weldability, High chemical resistance, High abrasion resistance, Low frictional resistance, Self-extinguishing, High resistance to permeation, High resistance to UV and gamma radiation.

    Applications: Bromine processing, Corrosive chemicals, Electronics manufacturing, Food industry, Universities, Hospitals, Pulp mill bleaching, Sanitary applications, Ultrapure water

    Temperature Range: -40°C to 121°C (-40°F to 250°F)

    ✓ High Operating Temperature
    ✓ Good Mechanical Properties
    ✓ Good Weldability
    ✓ High Resistance to UV and Gamma Radiation

    Technical

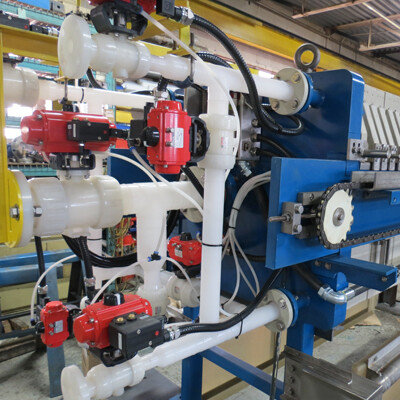

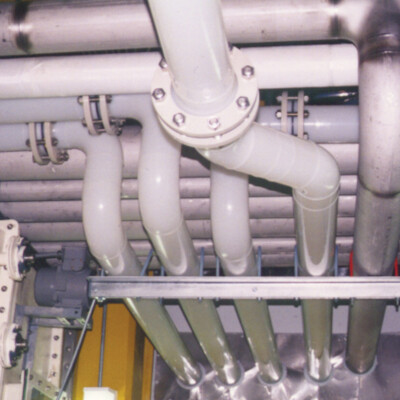

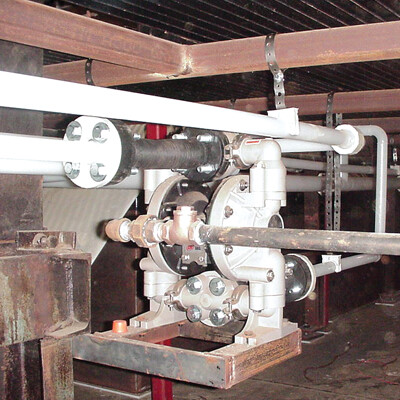

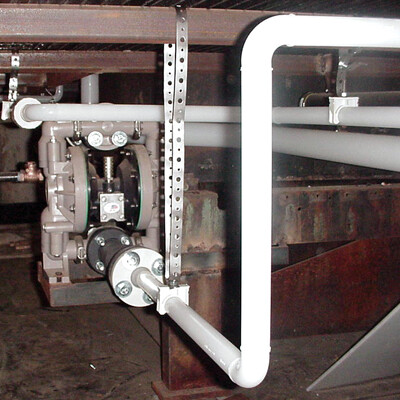

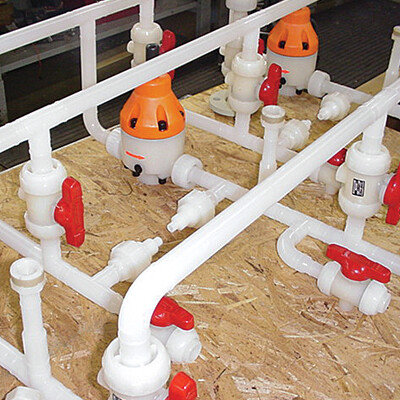

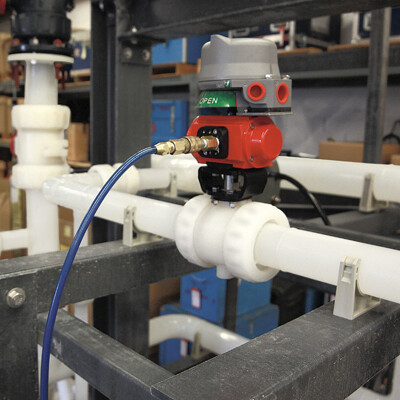

    Installs

    ChemlinePVDFPipingSystem2
    ChemlinePVDFPipingSystem1
    ChemlinePVDFPipingSystem4
    ChemlinePVDFPipingSystem6
    ChemlinePVDFPipingSystem7
    ChemlinePVDFPipingSystem5
    ChemlinePVDFPipingSystem3
    previous arrow
    next arrow

    Shadow

    Welders

    Butt Fusion Welders:

    Miniplast – Sizes 20mm to 110 mm (1/2" to 4")

    Maxiplast – Sizes 20mm to 160 mm (1/2" to 6")

    W-Series – Sizes 50mm to 630 mm (1-1/2" to 24")

    Non-Contact (IR) Fusion Welders:

    IR Miniplast – Sizes 20mm to 110 mm (1/2" to 4")
    SP-110S – Sizes 20mm to 110 mm (1/2" to 4")

    Socket Fusion Welders:

    HSOC – Sizes 20mm to 63 mm (1/2" to 2")

    W-3511 – Sizes 20mm to 110 mm (1/2" to 4")
