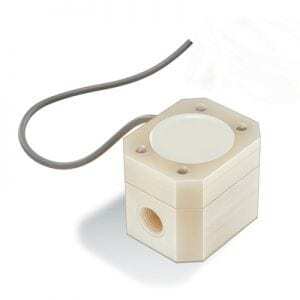

Oval Gear Flow Sensors

PPECTFE316L SS
Series:F3.80
Connections:Inline ¼” BSP male threaded
Sensor Body:PP, ECTFE, 316L SS
Oval Gears:ECTFE
Shaft:Zirconium (PP, and ECTFE only), 316LSS (only with 316L SS Body)
O-Rings:Viton
Flow Ranges:F3.81.H Model: 10 to 100 l/h (0.044 to 0.44 gpm)
F3.82.H Model: 25 to 150 l/h (0.11 to 0.66 gpm)

Description

Oval Gear Flow Sensors

Type F3.80 Oval Gear Flow Sensors are positive displacement flow meters suitable for high viscosity fluids up to 1,000 cP. Accuracy and repeatability is high.

Inside is a transducer and two oval gears oriented at 90 degrees to each other with embedded permanent magnets. A square wave output signal is generated with frequency proportional to rate of rotor rotation and flow velocity. This pulse output is normally fed to a FlowX3 flow monitor/transmitter or batch controller. It can also be fed to other brand instruments or PLC's.

Connectable Instruments: Panel/Wall Mount - M9.02, M9.10, M9.50

✓ High Accuracy
✓ Excellent for Low Flow
✓ Suitable for Pulsating Flows

Technical

Compatibility

Instruments

Connectable Instruments Panel/Wall Mount - M9.02, M9.10, M9.50
InstrumentM9.00.TM9.00M9.02.TM9.02M9.10.TM9.10M9.50.TM9.50

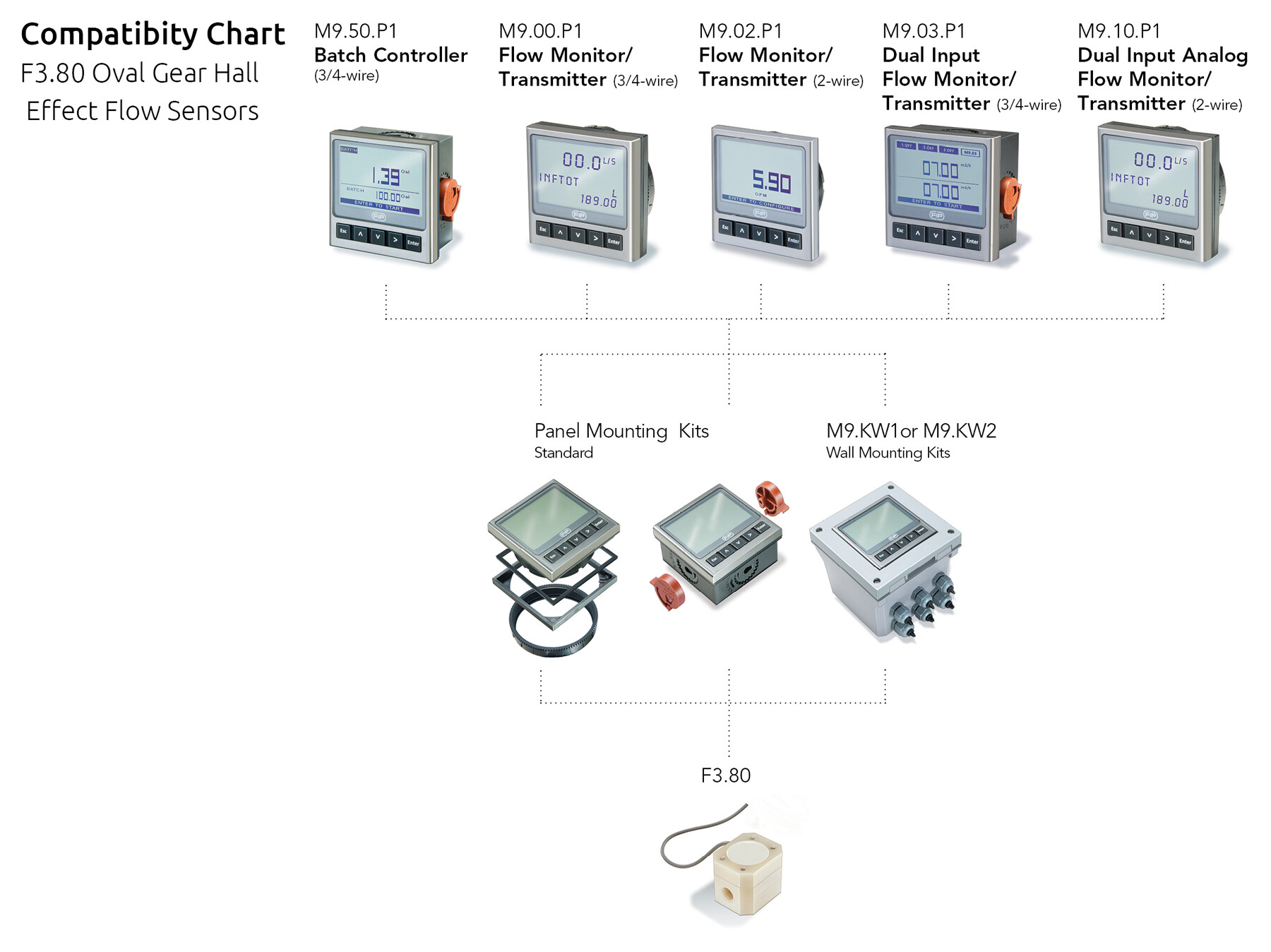

Compatibility Chart
Power Supply12-24 VDC12-24 VDC12-24 VDC12-24 VDC
Digital Outputs1 x SSR2 x SSR2 x OC2 x SSR
Analog Outputs1 X 4-20 mA4-20 mA2 X 4-20 mA4-20 mA
Wiring2-wire3/4-wire3/4-wire3/4-wire
Mechanical1 X SPDT2 X SPDT2 X SPDT

Pricing

Click below for detailed product information including pricing, availability, and additional supporting documentation.
Signal TypeBody Material
PP ECTFE316L SS
Hall
