Standard Electric Actuation – ERS Series
ERS Electric Actuators

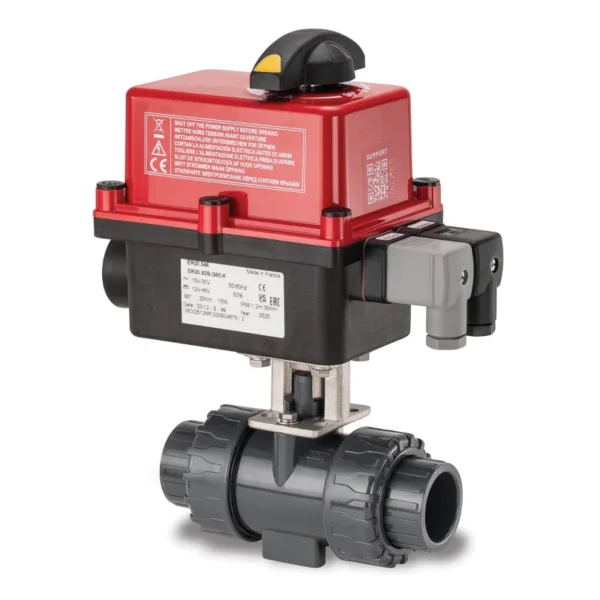

The Chemline ERS Series Electric Actuator is a reversible rotary unit with output torques up to 180 in.-lb. These units are ideal for all Chemline ball valves up to 2”. The ERS Series is compact, light weight and has a Polyamide PA6 housing. A large black handle provides manual override and position indicator.
Chemline also offers complete actuated ball, butterfly and diaphragm valves, assembled and bench tested. Actuation service is also available for all quarter-turn metal valves.
-
Size:Up to 2" Ball Valves
-
Voltage:20/240 VAC (50/60 Hz)
Features & Benefits
- Special Inspection Labelled by CSA
(Canadian Standards Association) - Approvals and Compliances
CE, EAC, RoHS - No Maintenance
Permanently lubricated gear train, Designed for 250,000 + cycles - Thermal Overload Protection
Thermal switch embedded onto control board - Multiple Operation/Control Options
2 & 3-wire, Adjustable Travel, Manual Override, Cold Weather Heater/Thermostat - Extended Operating Temperature Range
–10 to 60C (15 to 140oF) (standard)
Commonly used in these markets
Environmental
Process Industrial
Chemical, Storage & Transport
High Purity Water
Aquatic Life Support
Irrigation & Fertigation
Pools, Water Parks
Utility Water
