Pneumatic Actuation – PP Series
PP-Series Pneumatic Actuators
Chemline PP Series is part of the P Series family of quarter-turn pneumatic rack and pinion actuators designed for long cycling life in demanding industrial applications.
PP Series actuators feature bodies and end caps of injection moulded polyamide, 50% glass filled. These light weight compact actuators offer good chemical resistance. Chemline valves with PP actuators make an “all- plastic” lighter package, attractive for plastic piping systems.
Output torques are up to 915 in.-lbs. spring return (SR) and 1,335 in.-lbs. double acting (DA) with 80 psi control air. They will power all Chemline ball valves and butterfly valves up to 6” DA and 4” SR.

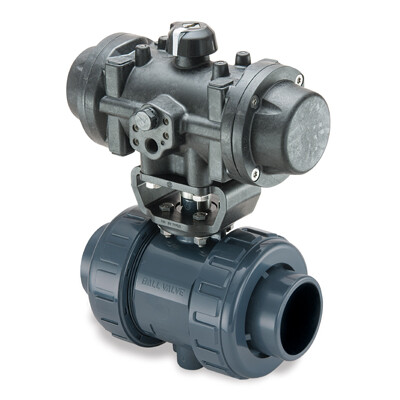

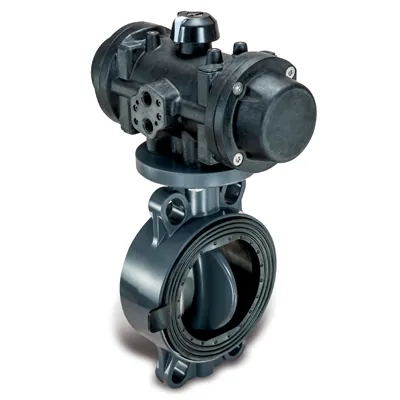

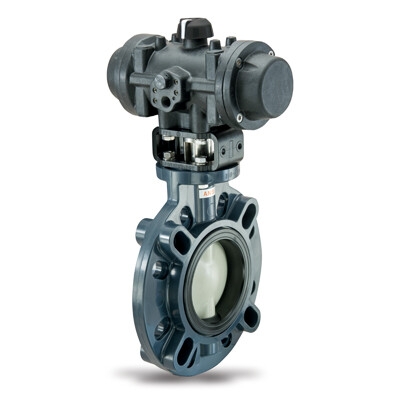

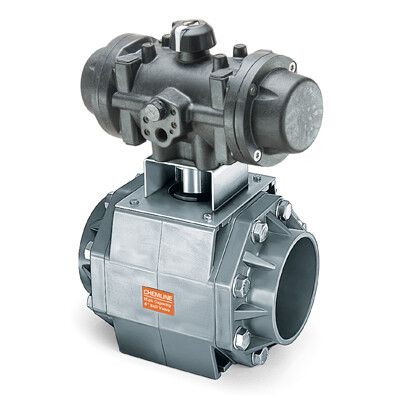

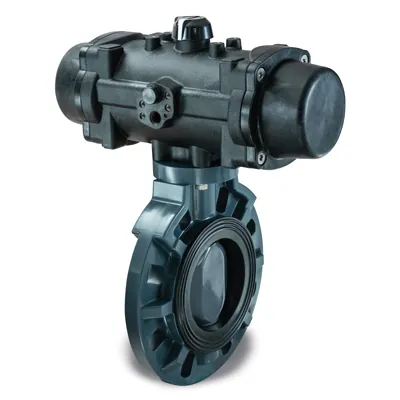

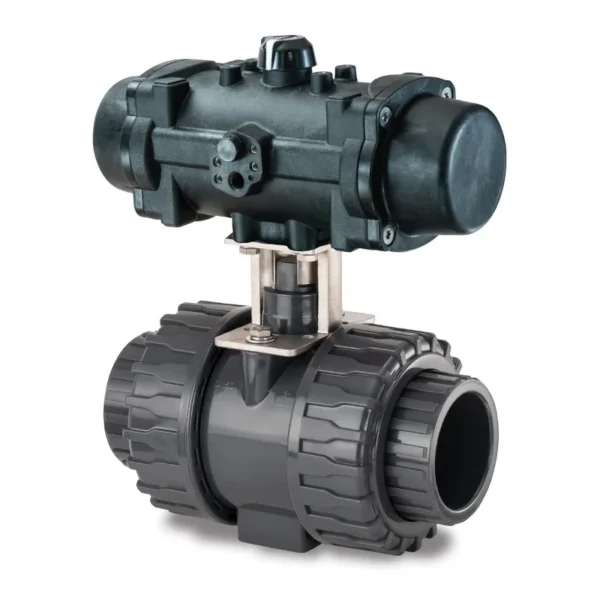

Chemline offers actuated ball and butterfly valves, assembled and bench tested. A complete range of control accessories is available. Also offered is actuation service for all quarter-turn metal valves.
-
Size:Up to 6" Ball Valves
Up to 6" Butterfly Valves -
Control Pressure:40 - 120 psi
-
Output Torque:(at 80 psi air): Up to 915 in-lbs Spring Return, or 1,335 in-lbs Double Acting
-
Materials:Polyamide
Up to 6" Ball Valves
Up to 6" Butterfly Valves
40 - 120 psi
(at 80 psi air): Up to 915 in-lbs Spring Return, or 1,335 in-lbs Double Acting
Polyamide
Features & Benefits
- Multiple Approvals and Compliances
EAC, DNV-GL, SIL - Corrosion Resistant
Injection moulded 50% glass-filled Polyamide body and end caps - Application Diversity
Industrial Process, Light weight or all-plastic applications - Compact Simple Design
Dual-opposed rack and pinion design supplies high torque for its size and weight
Commonly used in these markets
Process Industrial
Chemical, Storage & Transport
High Purity Water
Pools, Water Parks
Utility Water
