Ultra Low Flow Sensors

316L SSPOMECTFE
Series: ULF
Connections: Inline ¼” BSP male threaded
Sensor Body: POM or ECTFE
Rotor: POM or ECTFE
Shaft: Corepoint (POM) or Sapphire (ECTFE)
Bearings: Sapphire (ECTFE)
O-Rings: Viton or Kalrez (ECFTE)
Flow Ranges: ULF01 Model: 1.5 to 100 l/h (0.0066 to 0.44 gpm)
ULF03 Model: 6 to 250 l/h (0.0264 to 1.10 gpm)

Description

Ultra Low Flow Sensors

The Type ULF Ultra Low Flow Sensors are available in two flow ranges. They contain a transducer and a four blade paddle wheel rotor with a permanent magnet inside each blade. A square wave output signal is generated with frequency proportional to rate of rotor rotation and flow velocity. This pulse output is normally fed to a FlowX3 flow monitor/transmitter, blind transmitter, batch controller or adjustable flow switch. It can also be fed to other brand instruments or PLC's.

Connectable Instruments: ULF.H Hall Sensor - Panel/Wall Mount - M9.02, M9.10, M9.50 ULF.R Reed Sensor - Panel/Wall Mount - M9.00, M9.20

✓ Connects to Full Range of Instruments

Technical

Compatibility

Type ULF.H Hall Sensors require a supply voltage between 5 and 24 VDC. Hall Effect signals may be transmitted up to 300 meters (984 ft.) without the need for conditioning. ULF.H Compatibility Chart

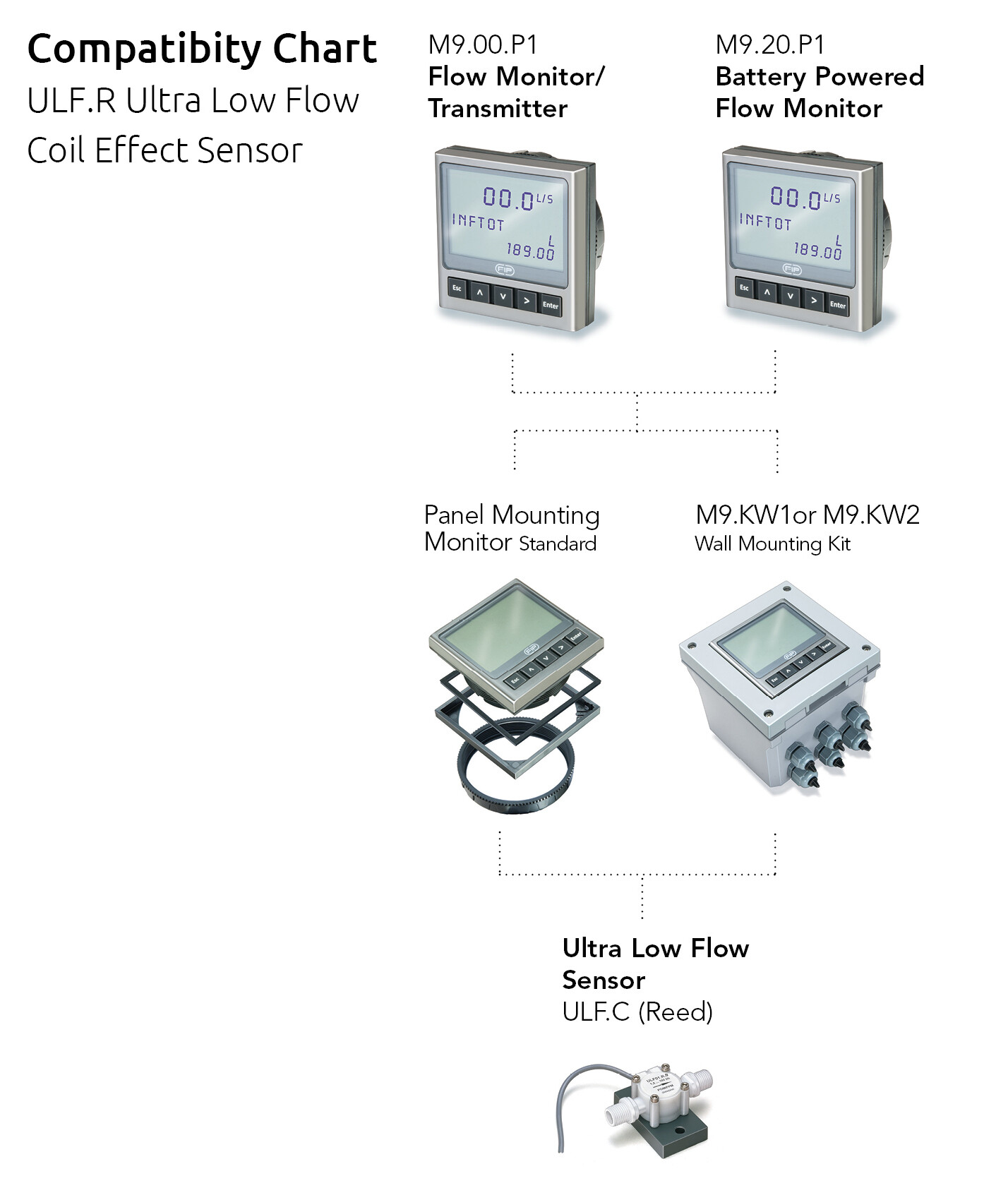

Type ULF.R Reed Sensors require no power supply. Reed Effect signals may be transmitted up to 16 m (52.5 ft.) without the need for conditioning. ULF.R Compatibility Chart

Instruments

Connectable Instruments ULF.H Hall Sensor - Panel/Wall Mount - M9.02, M9.10, M9.50 ULF.R Reed Sensor - Panel/Wall Mount - M9.00, M9.20
Instrument M9.00.TM9.00 M9.02.TM9.02 M9.10.TM9.10 M9.20.TM9.20 M9.50.TM9.50
Compatibility Chart
Power Supply 12-24 VDC 12-24 VDC 12-24 VDC 3.6V Lithium Thionychloride Size B Batteries 12-24 VDC
Digital Outputs 1 x SSR 2 x SSR 2 x OC 2 x SSR
Analog Outputs 1 X 4-20 mA 4-20 mA 2 X 4-20 mA 4-20 mA
Wiring 2-wire 3/4-wire 3/4-wire 3/4-wire
Mechanical 1 X SPDT 2 X SPDT 2 X SPDT

Pricing

Click below for detailed product information including pricing, availability, and additional supporting documentation.
Hall/Reed Body Material
POM ECTFE
Hall
Reed
