F3.20 High Pressure Paddle Wheel Flow Sensors

316L SS
Series: F3.20 High Pressure
Rotor: ECTFE (Halar)
Shaft: 316L Stainless Steel
Seals: Graphite Flat Gasket
Pipe Sizes: 1-1/2″ – 8″
Velocity Range: 0.15 to 8m/s (0.5 to 25 ft./sec.)

Description

Type F3.20 High Pressure Paddle Wheel Flow Sensors

The Type F3.20 Paddle Wheel Flow Sensors are the core items in the Digiflow FlowX3 line. A square wave output signal is generated with frequency proportional to rate of rotor rotation and flow velocity. This pulse output is normally fed to a FlowX3 flow monitor/transmitter or batch controller. It can also be fed to other brand instruments or PLC's.

Two types of sensors are available, Hall Effect and Push-pull sensors for safe connection to any NPN or PNP inputs. Hall Effect signals may be transmitted up to 300 meters (984 ft.) without the need for conditioning.

Connectable Instruments: Hall F3.20.H.01 Panel/ Wall M9.00, M9.02, M9.10, M9.50 Push-pull F3.20.P.01 – Connect to PLC’s with NPN or PNP Inputs

✓ High Pressure Rating
✓ Self Cleaning Design
✓ Submersible Sensors Available

Technical

Compatibility

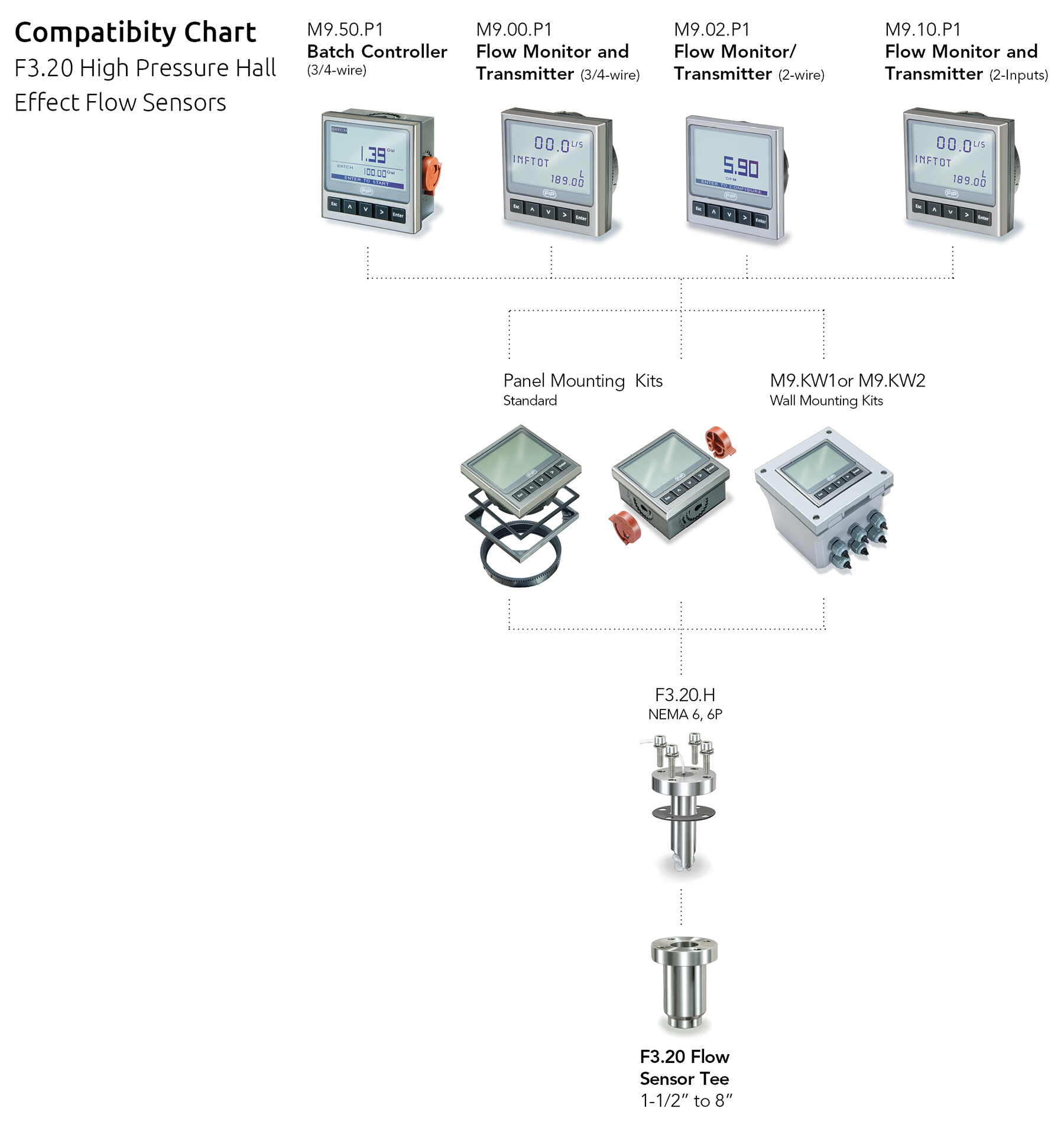

Type F3.20 High Pressure Flow Sensors F3.20 Compatibility Chart

Instruments

Connectable Instruments Hall F3.20.H.01 Panel/ Wall M9.00, M9.02, M9.10, M9.50 Push-pull F3.20.P.01 – Connect to PLC’s with NPN or PNP Inputs
Instrument M9.00.TM9.00 M9.02.TM9.02 M9.10.TM9.10 M9.50.TM9.50
Compatibility Chart
Power Supply 12-24 VDC 12-24 VDC 12-24 VDC 12-24 VDC
Digital Outputs 1 x SSR 2 x SSR 2 x OC 2 x SSR
Analog Outputs 1 X 4-20 mA 4-20 mA 2 X 4-20 mA 4-20 mA
Wiring 2-wire 3/4-wire 3/4-wire 3/4-wire
Mechanical 1 X SPDT 2 X SPDT 2 X SPDT

Fittings

Installation Fittings Size Materials Pressure Temperature
F3.20.SS Weld on adapter.T Flanged Weld-On Adaptors 1-1/2" to 8" 316 SS 1600 psi @ 120C (248F)

Pricing

Click below for detailed product information including pricing, availability, and additional supporting documentation.
Seals Body Material
316L SS
Graphite
