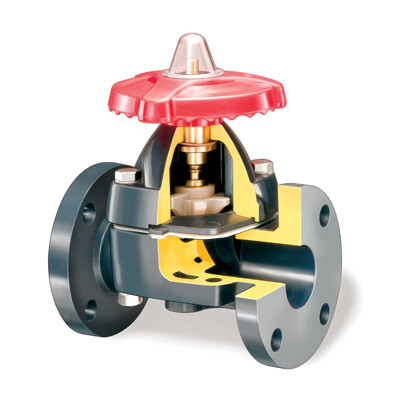

Diaphragm Valves – Type 14/15/72

The Chemline diaphragm valves have service histories dating back to 1970 operating in tough chemical plant applications. They have proven internal and external corrosion resistance. This is an excellent throttling valve, and is suited for slurries or viscous liquids. Because of the self-draining design with no dead volume, it is good for sanitary and high purity applications.

Polyvinyl Chloride
Chlorinated Polyvinyl Chloride
Pigmented Polypropylene
Polyvinylidene Fluoride
  • Size:

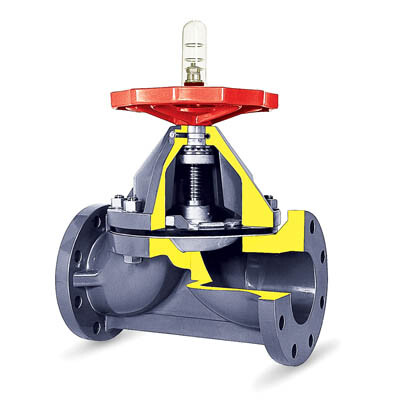

    Type 14: 1/2" to 4", Type 15: 5" to 6", Type 72: 8" to 10"
  • Ends:

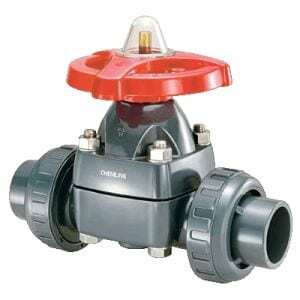

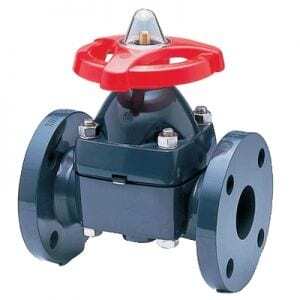

    Flanged: 1/2" to 10", True Union Socket, Threaded or Butt: 1/2" to 2", ChemFlare: 1/2" to 1"
  • Body:
    PVC, CPVC, PP, PVDF
  • Diaphragm Materials:
    EPDM, PTFE

Features & Benefits

  • Excellent Chemical Resistance
    Large Selection of materials including PVDF bodies and PTFE diaphragms for extremely aggressive services.
  • Externally Corrosion Resistant
    Any exposed metal parts are 304 SS.
  • High Pressure Resistance
    Designed with a high safety factor against leakage.
    Tight closing with low hand wheel torque.
    Highest pressure vs. temperature ratings of all plastic valve types.
  • Designed for Long Diaphragm Life
    Standard travel stop prevents over-tightening and excessive stress on diaphragm.
