Valve Actuation Services


    Price & DeliveryApplication/ Product Assistance


    ImmediateUpcomingFor Reference



    Opt-inOpt-out

    Description

    Valve Actuation Services

    Chemline can actuate metal valves free issued by our customers. Our experienced fabrication staff will mount and bench test the actuation system on your metal valves. We also offer a full range of actuator accessories for most models.

    Electric Actuators

    Model Valves/Torque Operation/Control Position Indication

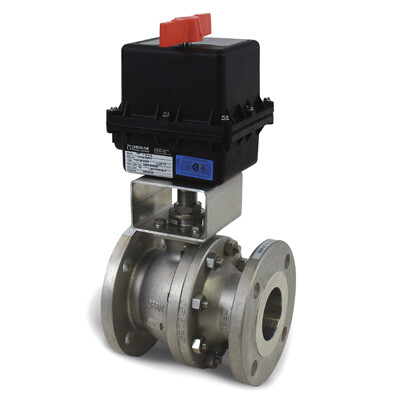

    ERS-series electric actuator
    ERS-Series
    Ball up to 2″
    Torque: up to 180 in-lbs
    On-Off (3 wire)
    Adjustable Travel

    Optional:
    On-Off (2 wire)
    Visual

    Optional:
    2 Feedback Switches

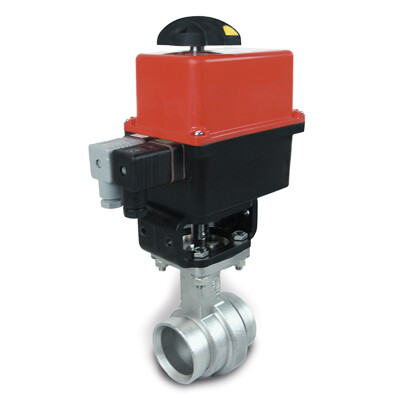

    E-series electric actuator
    E-Series
    Ball up to 4″
    Butterfly up to 4″
    Torque: up to 885 in-lbs
    On-Off (2/3 wire)
    Adjustable Travel

    Optional:
    Failsafe
    Modulating
    BUS (custom)
    Visual
    2 Feedback Switches

    Optional:
    2 Extra Feedback Switches
    Feedback Potentiometer
    Feedback Transmitter

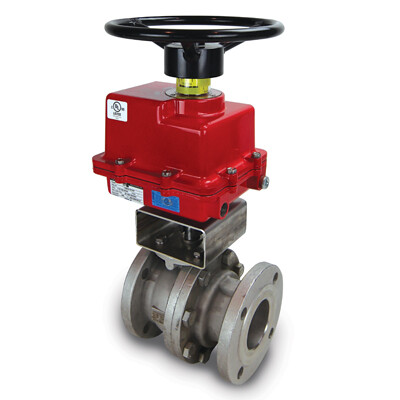

    V-series electric actuator
    V-Series
    Ball up to 6″
    Butterfly up to 20″
    Torque: up to 8850 in-lbs
    On-Off (2/3 wire)
    Adjustable Travel

    Optional:
    Failsafe
    Modulating
    BUS (custom)
    Visual
    2 Feedback Switches

    Optional:
    2 Extra Feedback Switches
    Feedback Potentiometer
    Feedback Transmitter

    Pneumatic Actuators

    Model Valves/Torque Application Material
    PA Series pneumatic actuator
    PA-Series
    Ball up to 6″
    Butterfly up to 24″
    Torque: up to 40,660 in-lbs
    Industrial Process
    Submerged
    Bleach / water washdown
    Rislan-coated aluminun

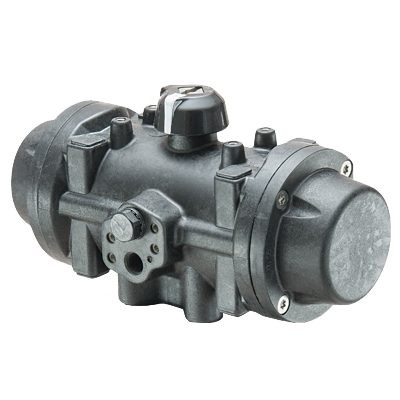

    PP-series pneumatic actuator
    PP-Series
    Ball up to 6″
    Butterfly up to 6″
    Torque: up to 1,335 in-lbs
    Industrial Process
    Minimal use of metal
    Glass-filled Polyamide
    PA Series pneumatic actuator
    PG-Series
    3-Way Ball up to 4″
    Torque: up to 2,834 in-lbs
    180-Degree operation
    Industrial Process
    Bleach / water washdown
    Rislan-coated aluminun

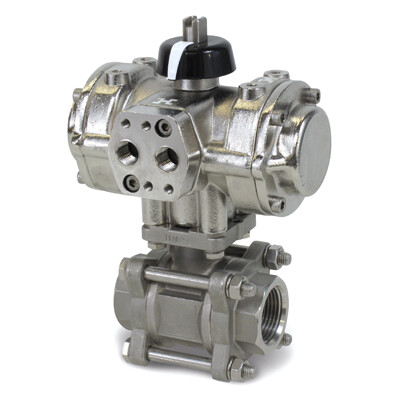

    P3-series pneumatic actuator
    P3-Series
    Ball up to 6″
    Butterfly up to 24″
    Torque: up to 8,850 in-lbs
    Corrosive
    Submersed
    Off-shore
    316 Stainless steel
